Contratto di assistenza
Sì
Classe di emissione
Fase V
Sistema di raffreddamento
Acqua
Meccanismo di alimentazione
Cilindro
Marca controllo barra
GEOTEC
Diametro foro
"115-203 mm 4 1/2""-8""
Diametro stelo/tubo
"140 mm 5 1/2"""
Tipo trasportatore
Cingolato
Condizioni Info/Garanzia
1000 Motogodzin - 1 rok
Dimensioni trasporto (LxLxH)
4970 x 1200 x 2150 mm
Altre informazioni
Base frame:
Sandwich main base frame with integrated fuel /
hydraulic oil tank for about 70 l diesel and about 150 l hydraulic oil (HLP 46) 4 pieces hydraulic cylinder for alignment of the machine; rubber crawler track with 250 mm as ridgid undercarriage 1200 mm.
Note: Undercarriage with extendable track
against surcharge.
Drive unit:
4-cylinder diesel engine 50 kw / 68 hp, water cooled with direct drive axial piston pump, oil cooler, oil supply / return line filters, sound cannon, emission standard according to EU Directive EU Stufe V / US EPA Tier 4
Basic hydraulic system:
Single circuit load sensing system,
proportional, directly or by remote control. Maximum pump capacity 105 l at 2400 U / min, max. System pressure: 190 bar 3 manometer, (system pressure, mud pressure, pull down)
Mast Standard:
Feeding slide out in track rollers, with release plate to accommodate different power swivel; Movement length: see drawing; pull up – pull down force 4000 kg; pull down pressure throttled to about 1000 kg so that it can not liftig the maschine mast side.
Hand control functions "main group"

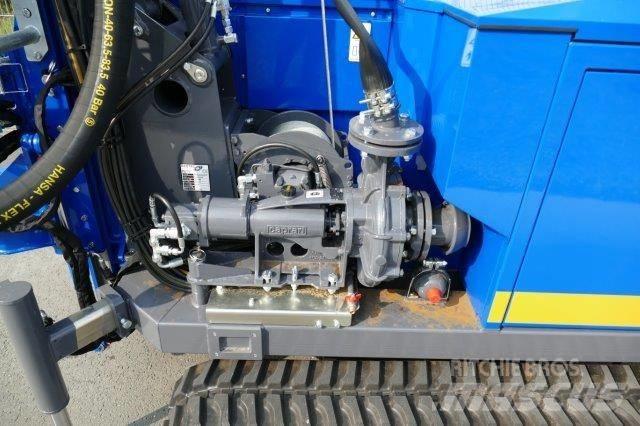

Power swivel; feed; mud pump; winch; crawler track right; crawler track left, a total of 6 valves
depending on the equipment
Crawler track control via cable remote control, drilling operation manually via control valves.
Note: Drilling operation alternative with
cable remote control for against
surcharge
Hand control function "auxiliary function"
Supports clinder up / down; crawler track with sliding; Mast erection; Mast extension; power swivel tillt; bracing clamp (casing); drill pipe Press / pul upl clamp a total of 10 valves
depending on the equipment
Mast-sided support:
Support cylinder of 850 mm to 1400 mm telescopic to increase the stability of the rig during the drilling operation
Power swivel to direct flush drilling:
hydraulic switchable 3-speed gearbox with directly flow passage, torque Nm 4400/2200/1100; rotation speed 0-50 / 0-100 / 0-200 rpm; mud pressure 25 bar and tilt device to 65 °
Power swivel folding and power swivel tilting device:
Manual unfold for pipe diameter 219 mm Swivel mechanism of the power swivel incl. check valve, lowering brake valve and control valves.
Swing-out angle with mud goseneck 65 °
Note: Hydraulic sideshift against surcharge.
Flood lights on mast head
2 pluggable headlamp mounted
Incl. cable and electric
Training
for 2-3 members for customer’s staff at our site in Nordkichen for 2 days (travel expensens not included)Mostra altri
