INFORMAZIONI

Categoria
Trivelle per fondazioni
Marca/modello

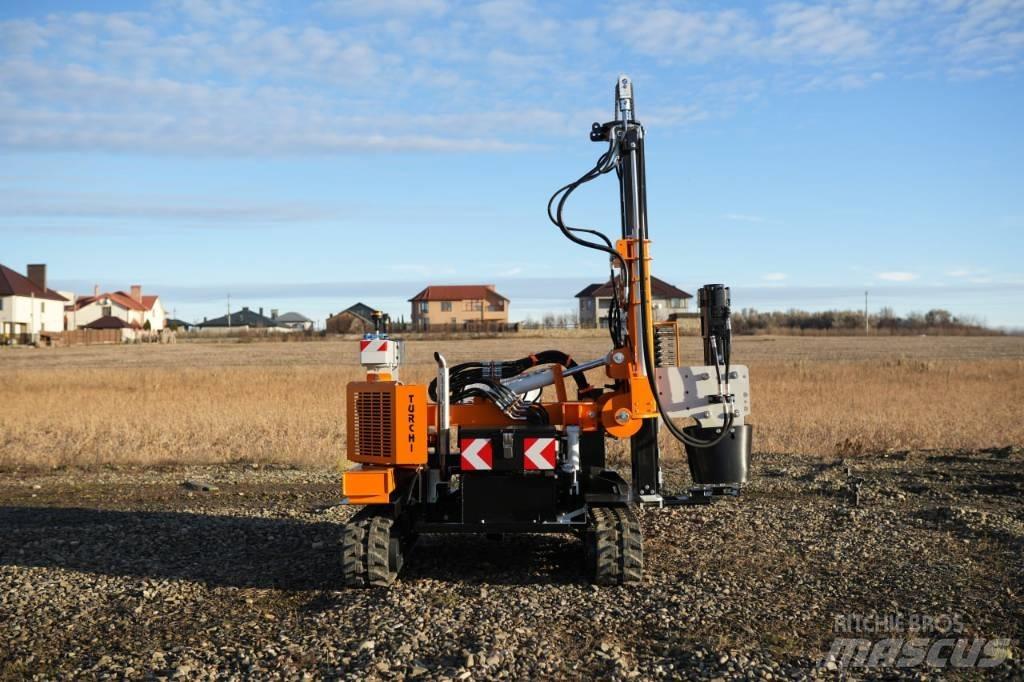

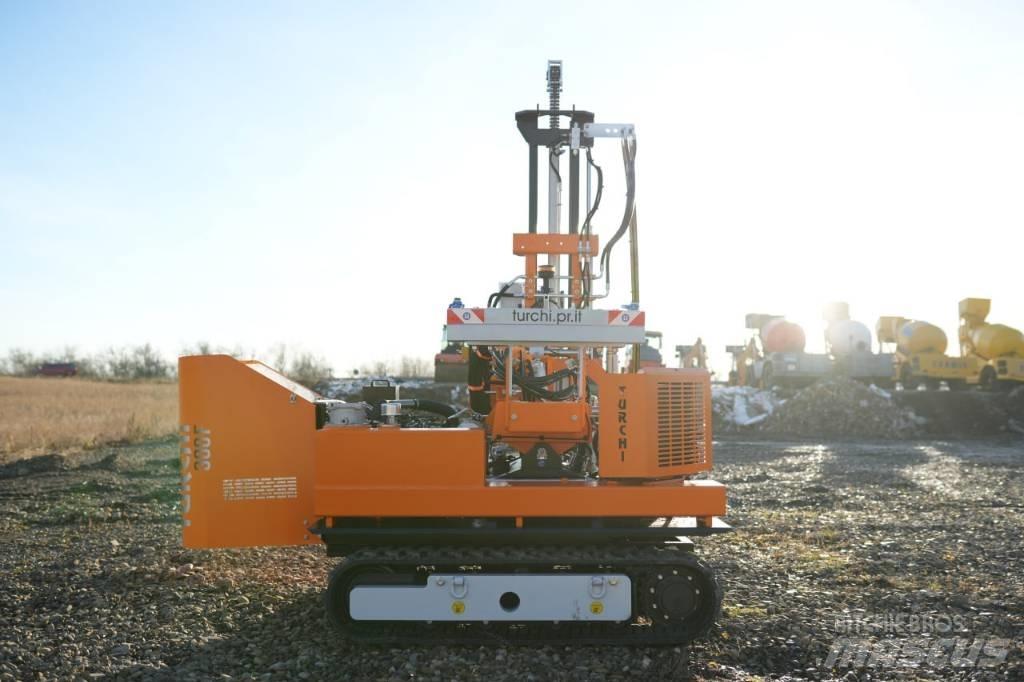

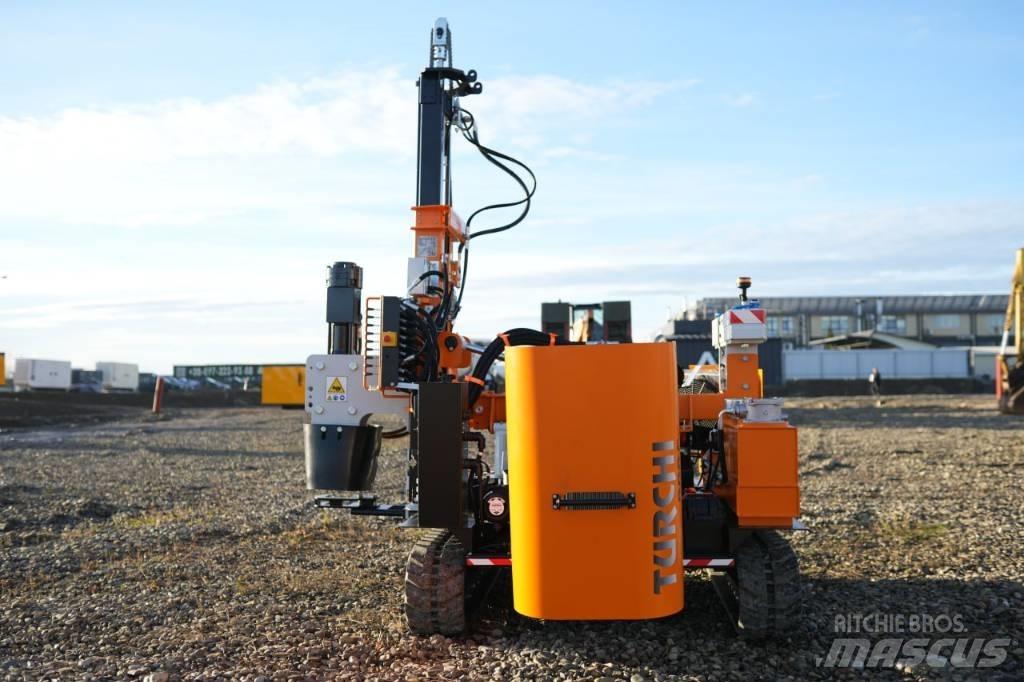

Turchi 300F
Anno di costruzione
2024
Condizioni
Non usato
Paese
Ucraina
Mascus ID
157D39B1

PREZZO

Scegli la valuta

DETTAGLI

Peso lordo
4.400 kg
Potenza motore
41 kW (55,7 hp)
Produttore motore
DOOSAN ENGINE
Nazione di produzione
Italia
Altre informazioni
Technical features: Weight kg 4500 Dimensions closed machine with lifted column: Length 2.100 mm Width 2350 mm Height 2670 mm (without pole slide) Movements hydraulic 1. Hammer starter stroke 2. Up/down movement of the hammer trolley 3. In/out movement of the slide stroke 600 mm 4. Stroke translator 130+130 mm 5. Column inclination from +10° to -51° 6. Slide inclination (training) from + 9,5° to -9,5° 7. Down/up movement of the column stroke 500 mm 8. Left track control 9. Right track control Power Oil sets on the machine 180 BAR Hydraulic system to open cicuit Hydraulic pump at gear Capacity oil tank 140 LT Translation's speed of machine 1,92 3,33 KM/H Engagement in HP 47,3 Maximum highest post 4.400 mm (6000 mm optional) HAMMER Impact power 950/1200 JOULE Impact rate 620÷1.500/570÷1180 Weight 350kg/450 kg Oil flow rate 60÷90 LT.-MIN./ 70÷100 LT.-MIN Power oil sets on the hammer 170 BAR ENGINE YANMAR 4TNV88: n° cylinder 4 Swept volume 2.190 CM3 Power at 3.00Mostra altri
