Bauer MBF10
Prezzo (IVA esclusa)
Prezzo su richiesta
18
Preferito
Condividi
Salva ricercaStampa
INFORMAZIONI
Categoria
Trivelle per fondazioni
Marca/modello
Bauer MBF10
Anno di costruzione
2007
Ore di utilizzo
6.750 h
Ubicazione della macchina
Middlesbrough, Cleveland
Paese
Regno Unito
Valutazione generale
1
2
3
4
5
Mascus ID
0A3DF58C
DETTAGLI
Stock interno nr.
PF 40524
Condizioni Info/Garanzia
All of our machines are checked and tested to ensure they are in full working condition when they reach your site – that is the Sigma guarantee.
Nazione di produzione
Stati Uniti d'America
Altre informazioni

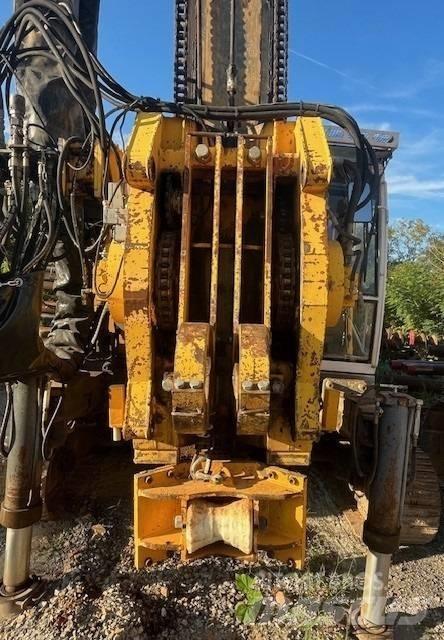

Bottom feed stone column vibro machine with 6750 operating hours

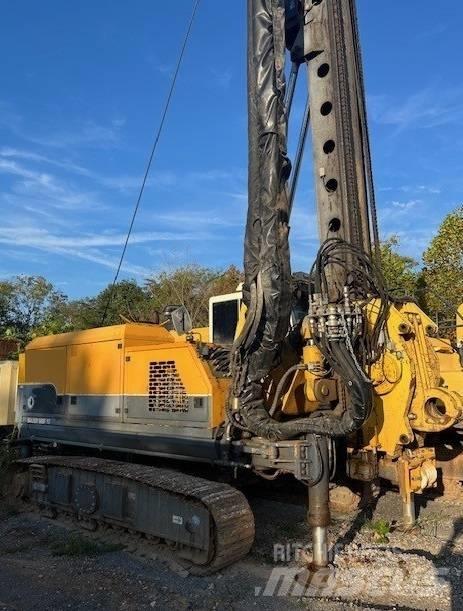

Bauer MBF10 carrier with UW25 undercarriage
Bauer B tronic data logging system
Side dump bucket for CTL
overall height 16m
floor plate width 500mm
overall width 2500-3300mm
crawler length 4200mm
width of track shoes 500mm
traction force (effective) 210kN
Cummins diesel engine (201kW @ 2000rpm, Tier lll)

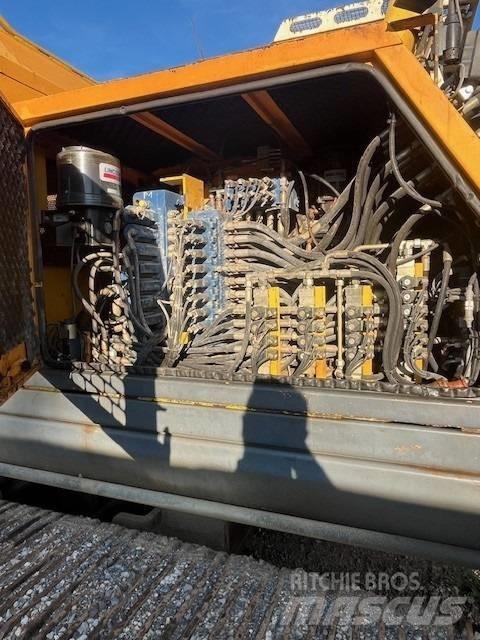

Hydraulic system – hydraulic power output 146kW
oil flow 2 x 150 + 1 x 120L/min
operating pressure 300bar
hydraulic tank 400L
2 x TR17 vibro – max depth 10.1m, centrifugal force 193kN, eccentric moment 1.7kgm, frequency 53Hz
operating weight 39.5T
main winch 125kN (rope diameter 20mm)
auxiliary winch 75kN (rope diameter 16mm)
Ingersoll rand 375/150 air compressor - output 93kW, delivery rate 10.3 cubic metres per minute, delivery pressure 10bar Crowd system – crowd force (push/pull) 125/125kN
Total pull (winch & chain) 225kN.
2 x TR17 vibro lances with hoppers
