Vahva FORTI 200

Prezzo (IVA esclusa)

Compnay LOGO
Images6Videos1
Vahva FORTI 200 Pale a rotazione
Vahva FORTI 200 Pale a rotazione
FavoritePreferito
shareCondividi
Save searchSalva ricerca
Stampa

INFORMAZIONI

Categoria
Pale a rotazione
Marca/modello
Vahva FORTI 200
Anno di costruzione
2015
Condizioni
Demo
Ubicazione della macchina
Saue
Paese
Estonia
Valutazione generale
1
2
3
4
5
Mascus ID
24BE0111

PREZZO

Scegli la valuta

DETTAGLI

Stock interno nr.
VR50000
Contratto di assistenza
Sì
Adatto per le seguenti macchine
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

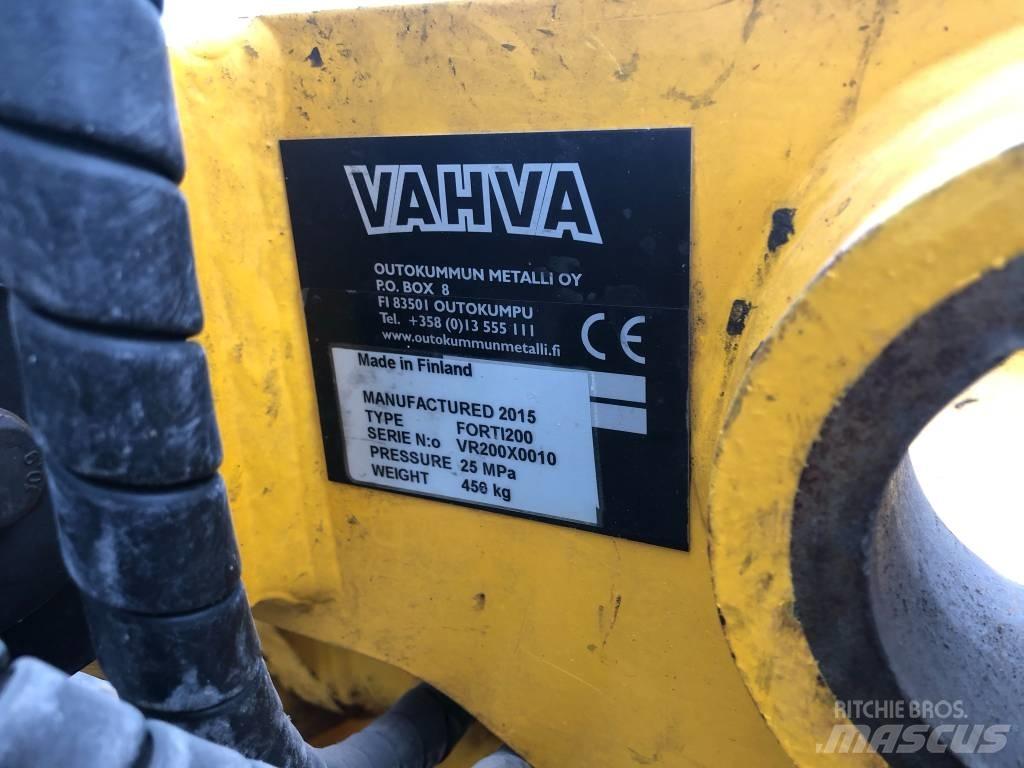

Numero di serie
VR200X0010
Pressione operativa
250 bar
Portata idraulica richiesta
80 l/min
Peso totale
450 kg
Dimensioni trasporto (LxLxH)
990 x 720 x 280 mm
Nazione di produzione
Finlandia
Condizioni di consegna
EXW
Certificati
CE
Altre informazioni

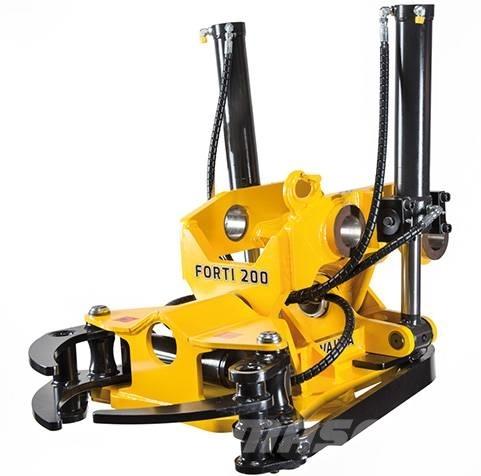

A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.Mostra altri
