PULSEROLLER
Prezzo (IVA esclusa)
Stampa
INFORMAZIONI
Categoria
Nastri trasportatori
Marca/modello
PULSEROLLER
Anno di costruzione
2012
Condizioni
Usate
Ubicazione della macchina
Langley, British Columbia
Paese
Canada
Mascus ID
0A36C2E4
PREZZO
Scegli la valuta
DETTAGLI
Stock interno nr.
56224
Altre informazioni
Roller Conveyor System w/ Motorized Sections, Vertical Lift, Spiral Chute
Title: Roller Conveyor System w/ Motorized Sections, Vertical Lift, Spiral Chute
SKU: 56224
Year: 2012
Condition: Used
GeneralApplication:Warehouse
Conveyor Type:Roller Conveyor
Width:21.5"
ElectricalVoltage:480volts
Phase:3-phase
Features
- 4 Motorized Conveyor Rollers (MDR) per 10 ft. conveyor section
- 2 MDR Control Cards per 10 ft. section
- 12 ft. Vertical Lift
- 10 ft. Portec Spiral Chute
[Video Link 1](... Link 2](... Link 3](... Diagram Current System](... Inventory List (Current System and Additional Parts)
- 12" x 21.5" Pulse Roll Conveyor Section: 2 qty
- 18" x 21.5" Pulse Roll Conveyor Section: 1 qty
- 4" x 21.5" Pulse Roll Conveyor Section: 1 qty
- 24" x 21.5" Pulse Roll Conveyor Section: 3 qty
- 48" x 21.5" Pulse Roll Conveyor Section: 1 qty
- 60" x 21.5" Pulse Roll Conveyor Section: 9 qty
- 72" x 21.5" Pulse Roll Conveyor Section: 9 qty
- 78" x 21.5" Pulse Roll Conveyor Section: 2 qty
- 96" x 21.5" Pulse Roll Conveyor Section: 2 qty
- 120" x 21.5" Pulse Roll Conveyor Section: 66 qty
- 30 Degree Pulse Roll Curve Section: 1 qty
- 45 Degree Pulse Roll Curve Section: 2 qty
- 60 Degree Pulse Roll Curve Section: 2 qty
- 90 Degree Pulse Roll Curve Section: 8 qty
- 30 Degree Merge Pulse Roll Merge Conveyor Section: 2 qty
- 60 Degree L/H Pulse Roll Merge Conveyor Section: 1 qty
- 72" x 21.5" Spring Return Pulse Roll Gate: 10 qty
- Power Supply 480VAC - 24VDC: 21 qty
- Transformer 600V - 480V 3ph: 21 qty
- 12' Vertical Reciprocating Conveyor Lift: 1 qty
- 10' Portec Spiral Chute: 1 qty
- 24" - 30" Leg Sets: 109 qty
- 72" Duplex Legs: 13 qty
MDR Power Supply
Voltage AC: 480 V
Voltage DC: 24 V
Phase: 3
Hertz: 60
Transformer
kVA: 2
Phase: 3
Primary Voltage: 600/480 V
Secondary: 480Y/277 V

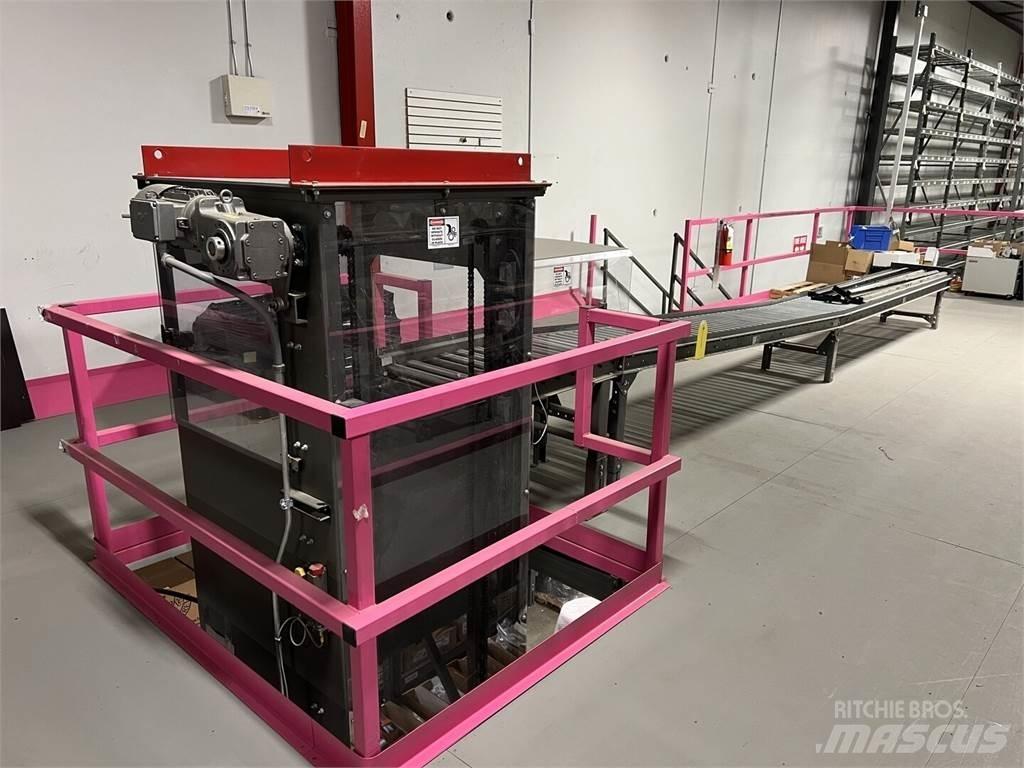

12 ft. Vertical Lift

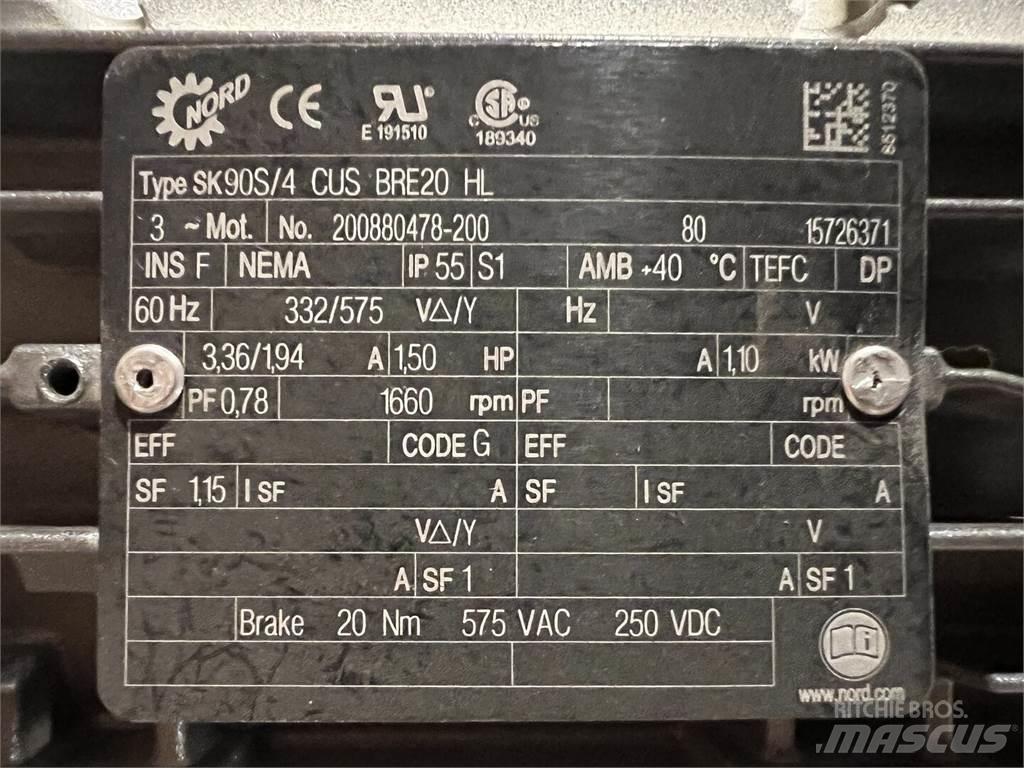

Motor: 1.5 hp, 3-ph, 332/575 V, 3.36/1.94 A, 1660 rpm
Gearbox Ratio: 11.39
YASKAWA Digital Operator:
- Model: JVOP-180
- Electrical: 575 V, 3-ph, 2.7/1.7 A
Main Panel Disconnect: 30 A, 575 V

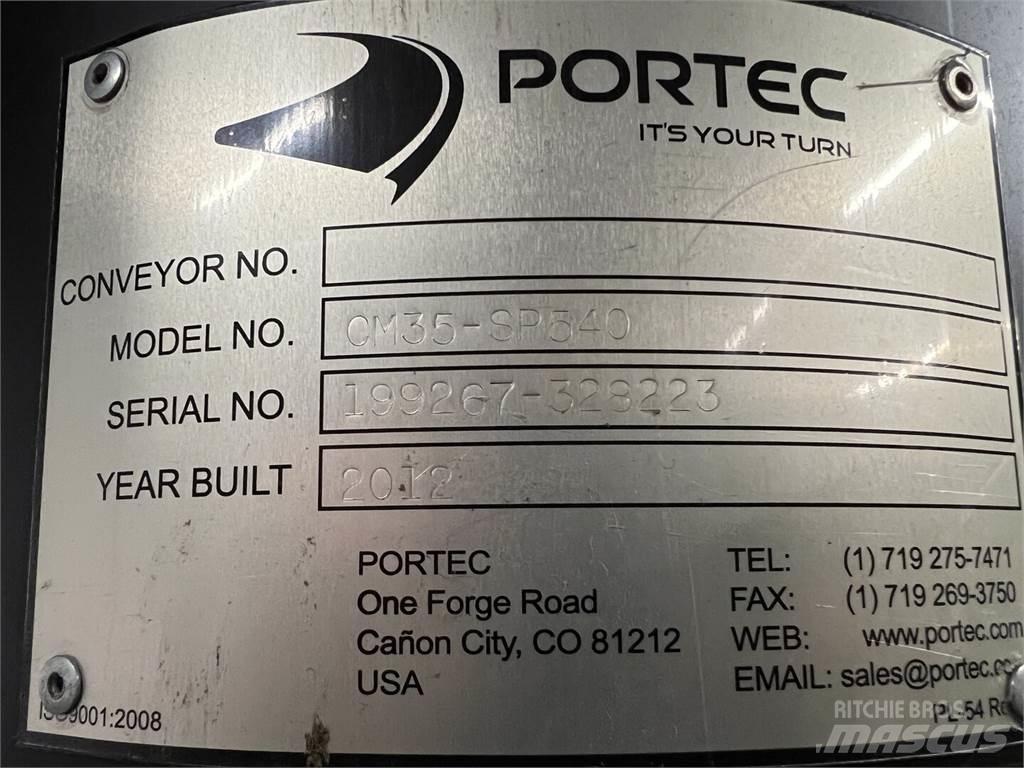

Spiral Chute
Brand: Portec
Model: OM35-SP540
Length: 10 ft.
Lenmark Industries Ltd
27576 51a Ave V4W 4A9 Langley British Columbia Canada
