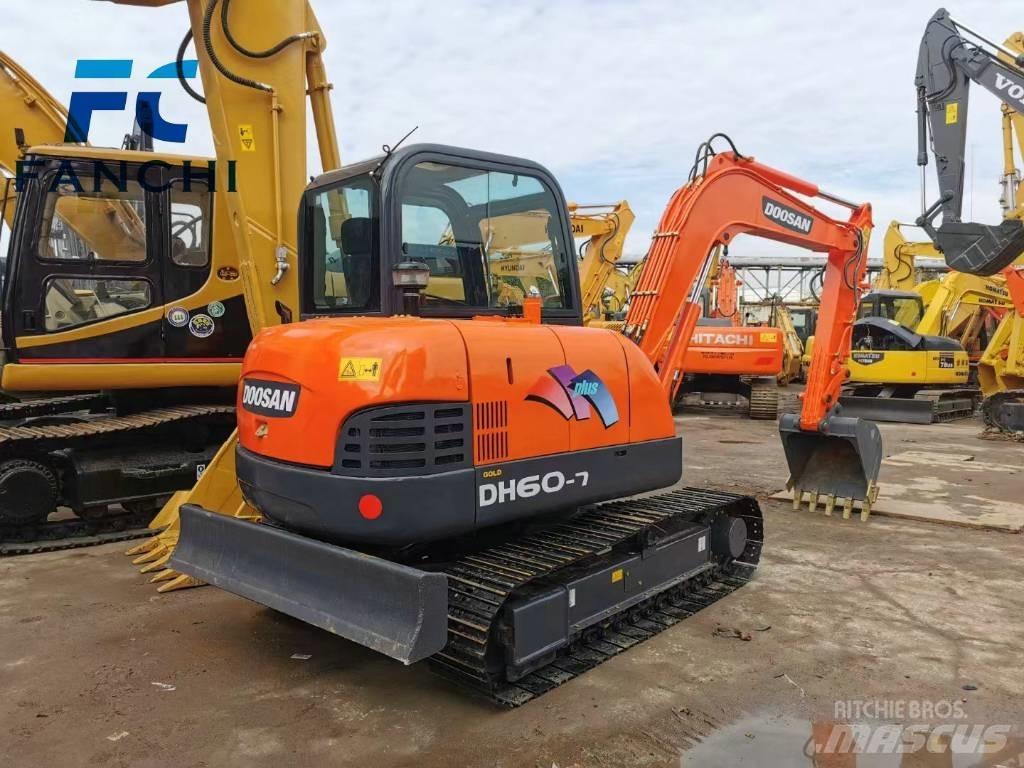

Doosan DH 60

Prezzo (IVA esclusa)

FavoritePreferito
shareCondividi
Save searchSalva ricerca
Stampa

INFORMAZIONI

Categoria
Miniescavatori
Marca/modello
Doosan DH 60
Anno di costruzione
2023
Ore di utilizzo
600 h
Paese
Cina
Valutazione generale
1
2
3
4
5
Mascus ID
86AB9175

PREZZO

Scegli la valuta

DETTAGLI

Proprietari precedenti
1
Condizione sottocarro
good
Peso lordo
6.000 kg
Track width
400 mm
Capacità benna
2 m3
Dimensioni trasporto (LxLxH)
585018802.575 m
Colore originale
YELLOW
Lunghezza avambraccio/barra
1.990 mm

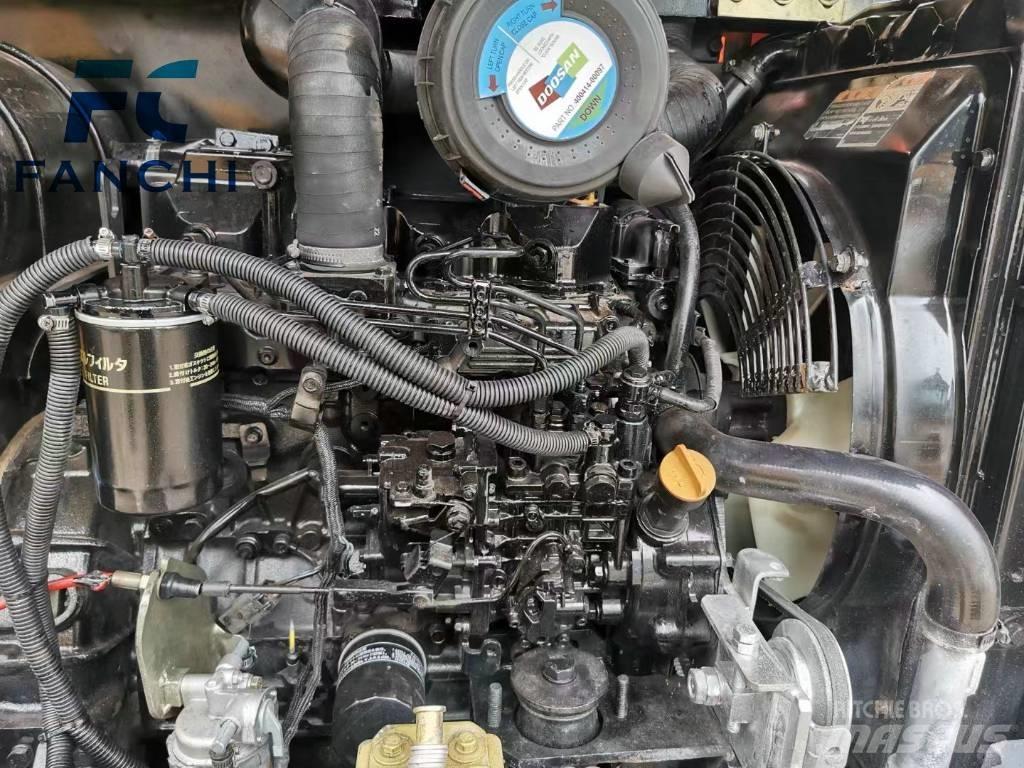

Motore
洋马 4TNV94L
Potenza motore
38,1 kW (51,8 hp)
Produttore motore
JAPAN
Condizioni Info/Garanzia
good
Nazione di produzione
Giappone
Condizioni di consegna
FOB, CIF, EXW
Certificati
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Accessori
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Accessori
Accoppiamento rapido automatico/idraulico
impianto martello
Benna ramaglie
GPS
Mostra altri
Altre informazioni
Overall Machine Parameters: - Total operating weight of the whole machine: 5550 kg - Bucket capacity: 0.09 - 0.2 m³ - Boom length: 3000 mm - Arm length: 1600 mm - Total transport length: 5850 mm - Total transport width: 1880 mm - Total transport height: 2575 mm - Total height of the cab: 2575 mm - Width of the upper carriage: 1885 mm - Track ground contact length: 1990 mm - Total track length: 2540 mm - Track shoe width: 400 mm - Total track width: 1880 mm - Track gauge: 1480 mm - Minimum ground clearance: 350 mm - Rear swing radius: 1650 mm Performance Parameters: - Bucket digging force: 37.7 kN - Arm digging force: 28.4 kN - Maximum digging radius: 6150 mm - Maximum digging depth: 3820 mm - Maximum digging height: 5760 mm - Maximum unloading height: 4030 mm Engine Parameters: - Engine model: Yanmar 4TNV94L - Rated power: 38.1 kW/2200 rpm - Number of cylinders: 4 - Cooling method: Water cooling - Working mode: Air-to-air intercooling Hydraulic System Parameters: - Main pump type: Variable axial piston pump × 2 - Maximum flow rate of the main pump: 55×2 L/min - Working hydraulic circuit pressure: 20.6 MPa - Travel hydraulic circuit pressure: 20.6 MPa - Swing hydraulic circuit pressure: 21.6 MPa - Flow rate of the pilot pump: 9.9 L/minMostra altri

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 Cina
