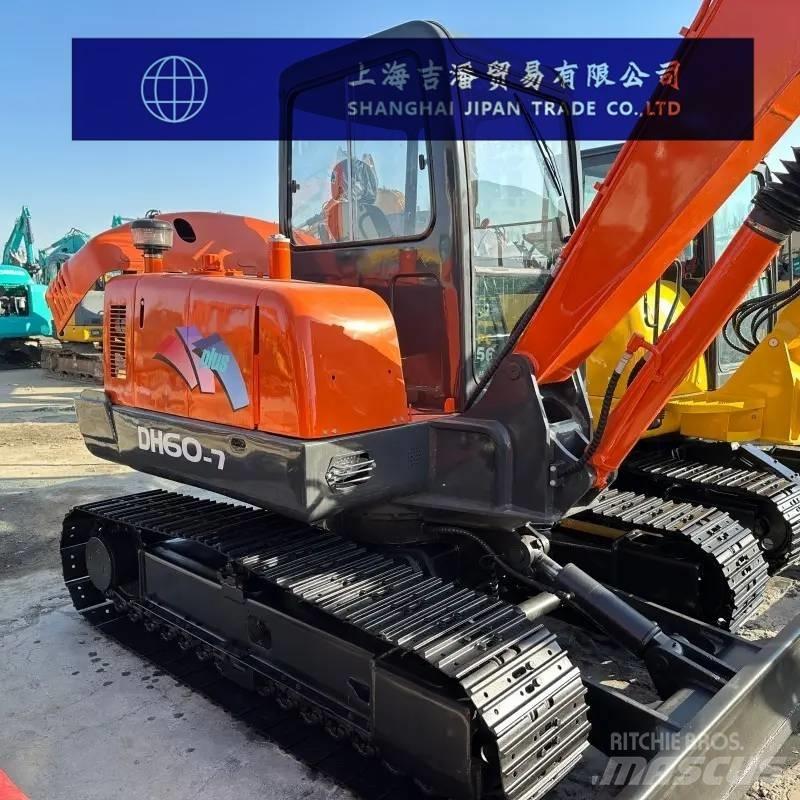

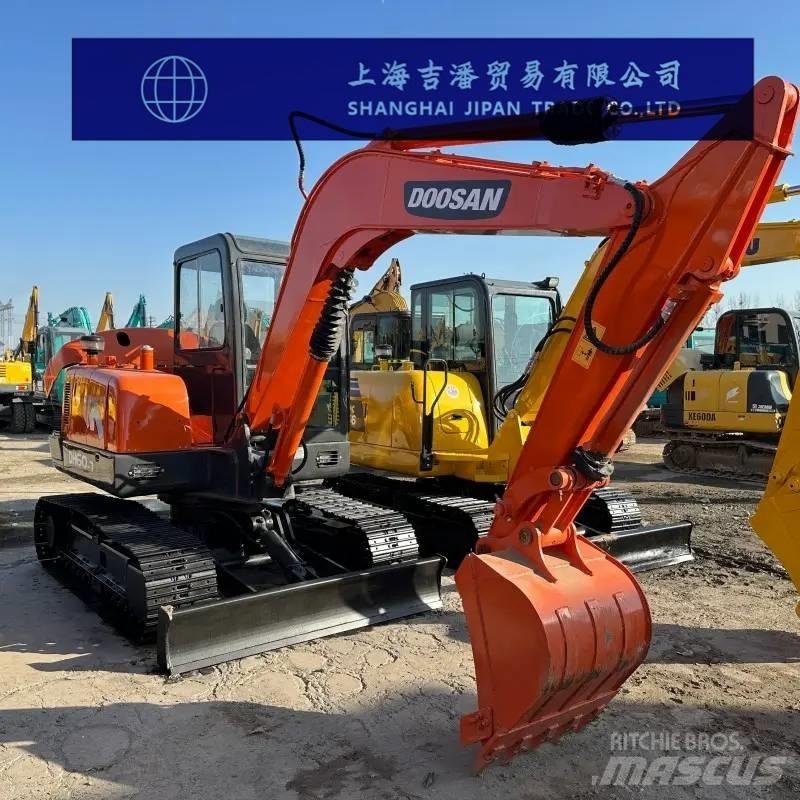

Doosan DH 60-7

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Doosan DH60-7 excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)6 The overall working weight of the machine (kg) is 5550 Bucket capacity (m³) : 0.09-0.2 Boom length (mm) : 3000 The length of the boom (mm) is 1600 Origin: South Korea Performance Bucket digging force (kN)37.7 The digging force of the bucket arm (kN) is 28.4 Power system Engine model: Yanmar 4TNV94L Rated power (kw/rpm)38.1/2200 Number of cylinders (4) The cooling method is water cooling The work style is rather cold Hydraulic system Main pump type variable: Axial piston pump ×2 The maximum flow rate of the main pump (l/min) is 55×2 The pilot pump flow rate (L/min) is 9.9 Working hydraulic circuit (Mpa)20.6 The walking hydraulic circuit (Mpa) is 20.6 Rotary hydraulic circuit (Mpa)21.6 Main body size The total length of transportation (mm) is 5850 The total transportation width (mm) is 1880 The total transportation height (mm) is 2575 The total height of the cab (mm) is 2,575 The width of the vehicle (mm) is 1885 Track grounding length (mm)1990 The total length of the track (mm) is 2540 Track plate width (mm) : 400 The total width of the track (mm) is 1880 Track gauge (mm) : 1480 Minimum ground clearance (mm) : 350 The rear end turning radius (mm) is 1650 Scope of work Maximum excavation radius (mm) : 6150 Maximum excavation depth (mm) : 3820 Maximum excavation height (mm) : 5760 Maximum unloading height (mm) : 4030
