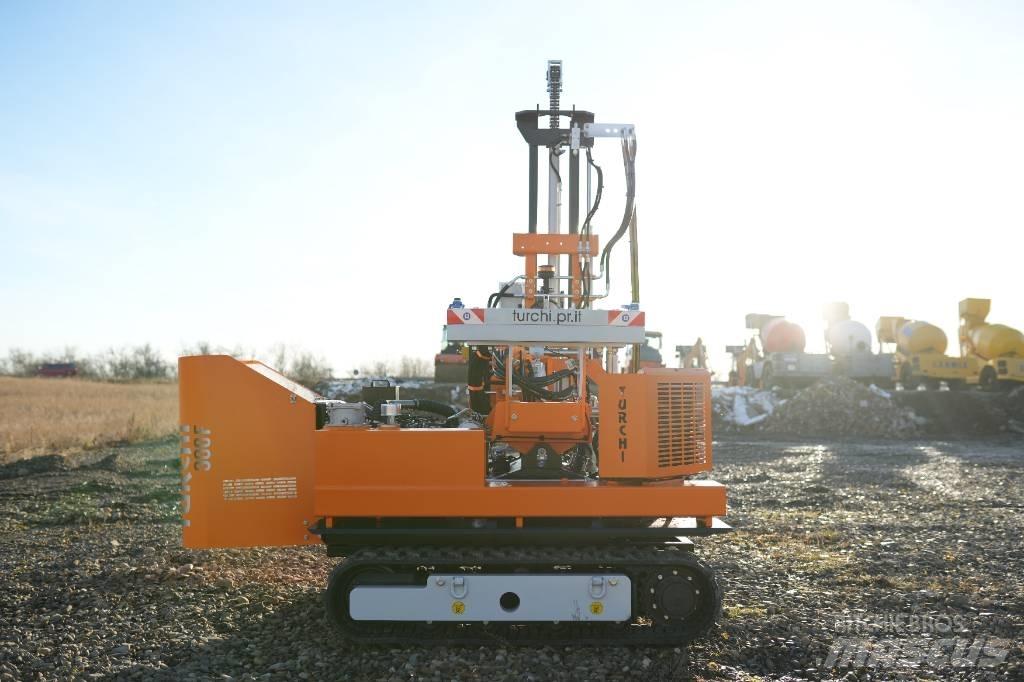

Turchi 300F

Prezzo (IVA esclusa)

Prezzo su richiesta

FavoritePreferito
shareCondividi
Save searchSalva ricerca
Stampa

INFORMAZIONI

Categoria
Martelli idraulici per pali
Marca/modello
Turchi 300F
Anno di costruzione
2024
Altre opzioni
Non usato
Paese
Ucraina
Mascus ID
67FBA455

DETTAGLI

Classe di emissione
Fase IIIA
Peso totale
4.800 kg

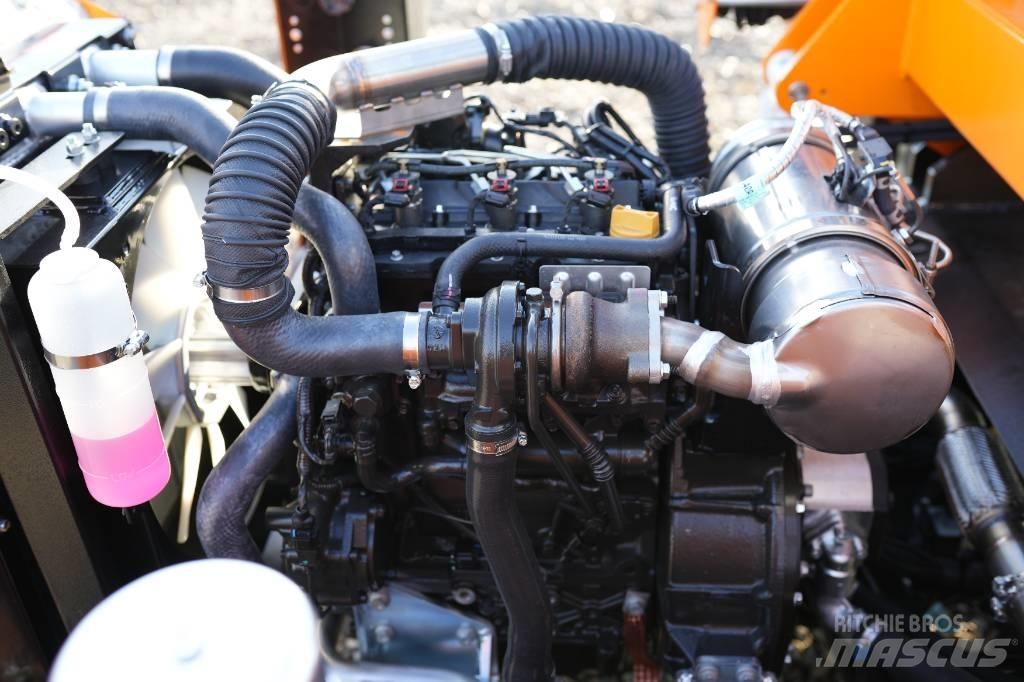

Produttore motore
Doosan
Dimensioni trasporto (LxLxH)
Length 2.100 mm. Width 2350 mm. Height 2670 mm m
Nazione di produzione
Italia
Condizioni di consegna
EXW
Altre informazioni
Turchi 300F 2024 Weight kg 4800 Dimensions closed machine with lifted column: Length 2.100 mm Width 2350 mm Height 2670 mm (without pole slide) Movements hydraulic 1. Hammer starter stroke 2. Up/down movement of the hammer trolley 3. In/out movement of the slide stroke 600 mm 4. Stroke translator 130+130 mm 5. Column inclination from +10° to -51° 6. Slide inclination (training) from + 9,5° to -9,5° 7. Down/up movement of the column stroke 500 mm 8. Left track control 9. Right track control Power Oil sets on the machine 180 BAR Hydraulic system to open cicuit Hydraulic pump at gear Capacity oil tank 140 LT Translation's speed of machine 1,92 3,33 KM/H Engagement in HP 47,3 Maximum highest post 4.400 mm ( optional up to 6000 mm) HAMMER Impact power 950/1200 JOULE Impact rate 620÷1.500/570÷1180 Weight 350kg/450 kg Oil flow rate 60÷90 LT.-MIN./ 70÷100 LT.-MIN Power oil sets on the hammer 170 BARMostra altri
