INFORMAZIONI

Categoria
Martelli idraulici per pali
Marca/modello
BSP HH6 LD
Anno di costruzione
1998
Ubicazione della macchina
Etten Leur, Noord-Brabant
Paese
Paesi Bassi
Valutazione generale
1
2
3
4
5
Mascus ID
3E85A9F3

PREZZO

Scegli la valuta

DETTAGLI

Ultima ispezione
2024-10-14
Proprietari precedenti
1
Peso totale
8.500 kg
Dimensioni trasporto (LxLxH)
5500 x 740 x 1110 mm
Condizioni Info/Garanzia
warranty expired
Nazione di produzione
Regno Unito
Condizioni di consegna
EXW
Accessori
Leader guides for 720mm wide leader mast Hydraulic hose bundle Hoisting device for lifting the hammer Electronic cable Control box Drive cap for 30x30cm precast pile No manifold included
Altre informazioni

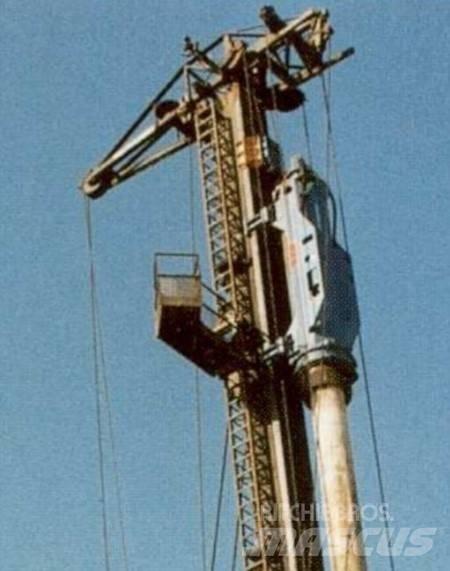

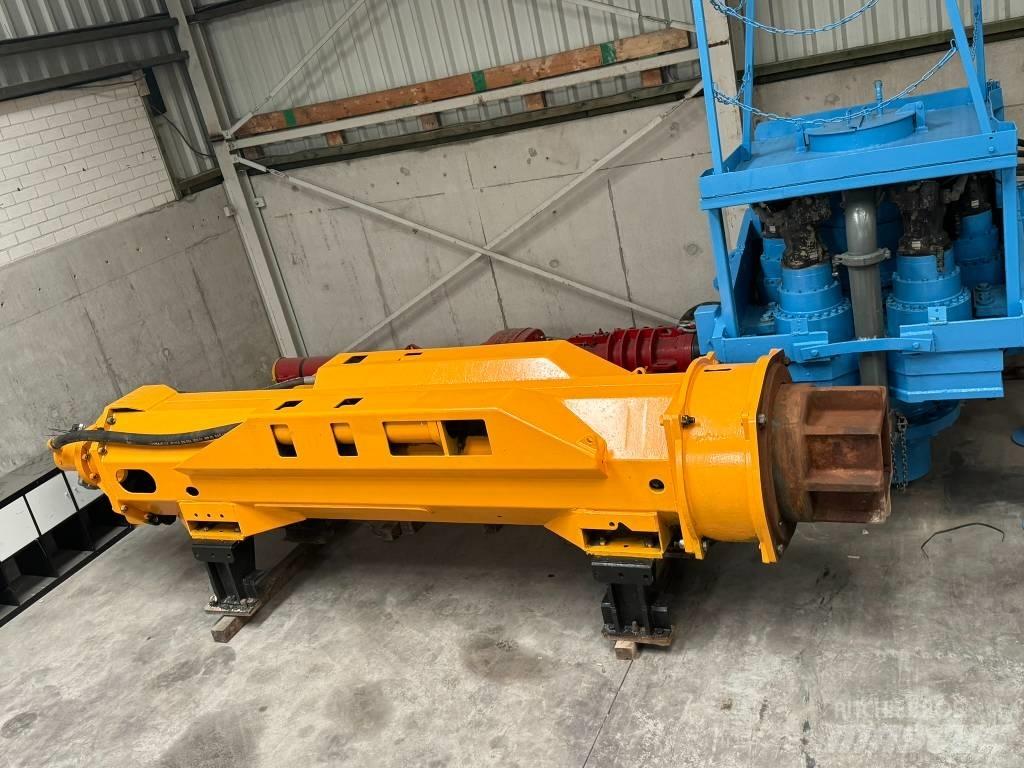

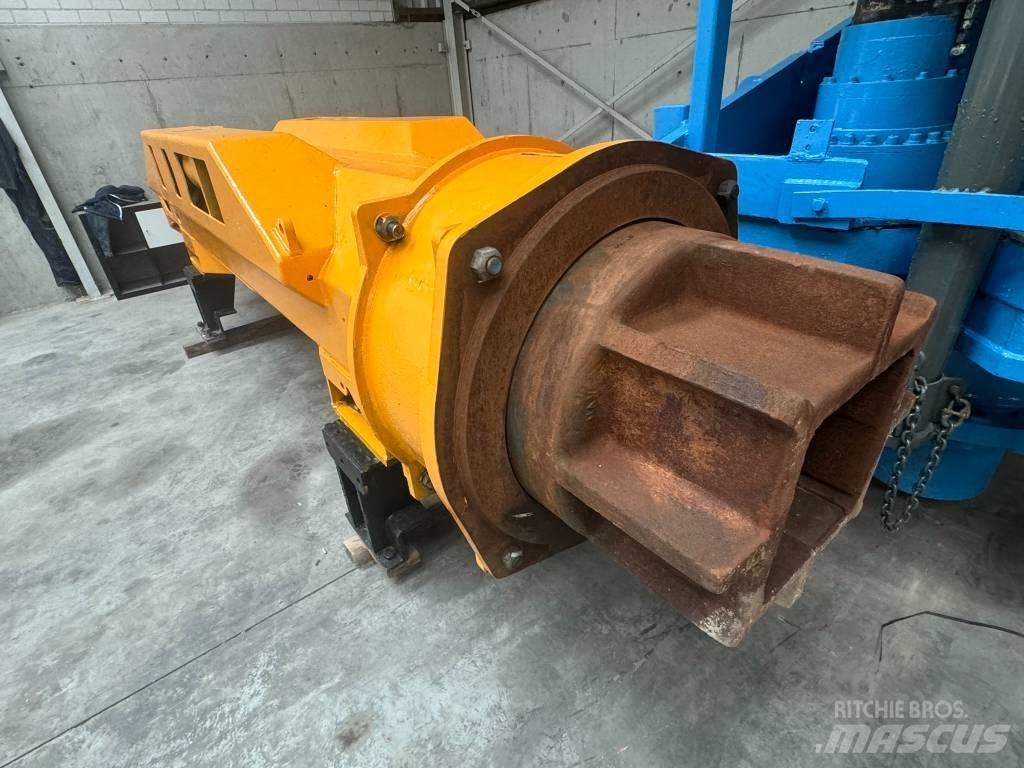

The BSP HH 6LH is a hydraulic impact hammer which was especially designed for leader guided pile driving. The hammer has a very smart design which makes it short and therefor makes it suitable to drive longer piles than with most other hammers. This hammer is suitable to be used with the drive cap system of van Hattem. It can be used to drive steel tubes but the hammer is also suitable for driving precast concrete piles. Specifications: Max. energy 71 kNm Max. stroke 1200 mm Length is 5500 mm Max. blow rate at 1.200mm stroke is 40 blows/min. Max. oil flow 180 ltr/min Max. pressure: 250 bar Operational weight 8500 kgMostra altri

Foundiz

Kroonstraat 1 4879 AV Etten-Leur Noord-Brabant Paesi Bassi
