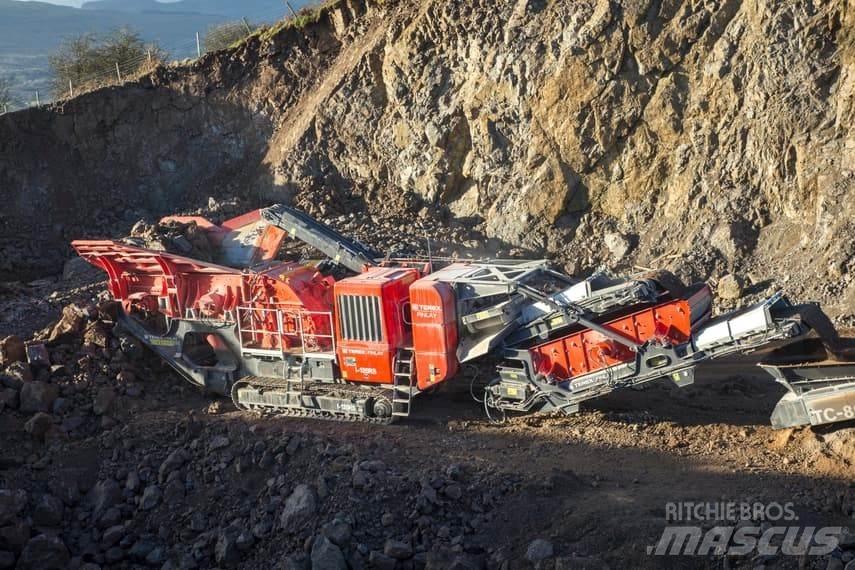

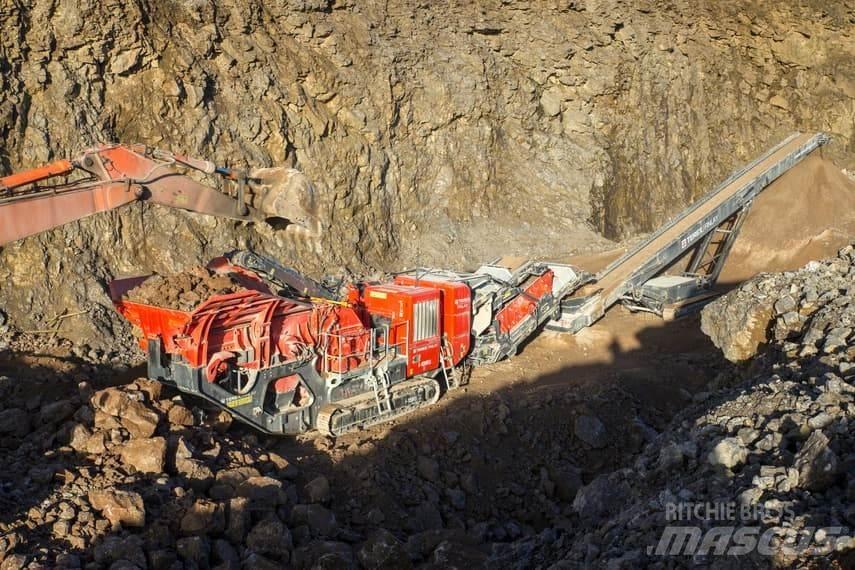

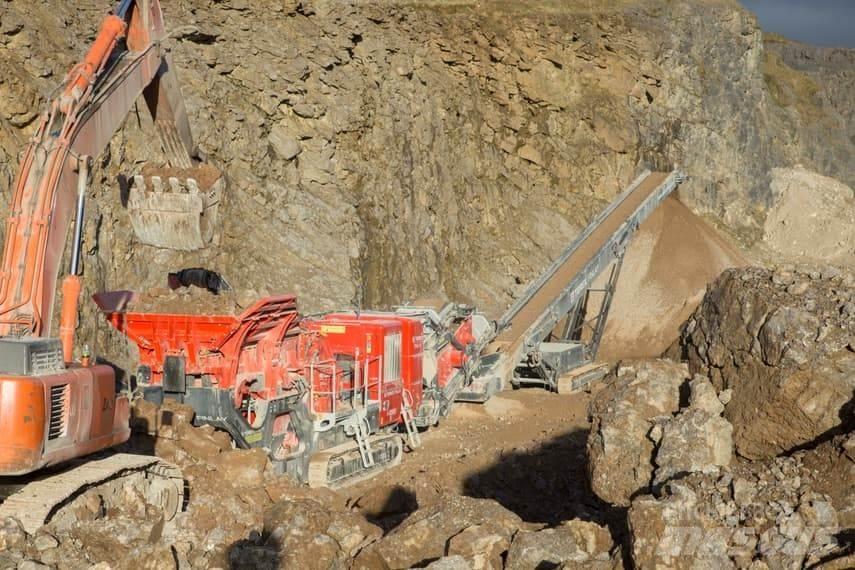

Terex Finlay I-120

Tier 4 Final /Stage IV : Scania DC9 294kW (400hp) Engine Impact Chamber: Terex CR038 Impact chamber Fully Hydraulically assisted apron setting and hydraulic apron release Manual raise chamber flap allowing extra inlet clearance 4 bar rotor - 2 High & 2 Low Direct Drive via Clutch Drive belt tensioner wheel Blow bar lifting tool supplied Tip Speed range 36-45 m/sec (118-148 ft./sec). Hopper: VGF Fixed Hopper Stepped grizzly feeder with integral pre-screen, standard 50mm spacing STD Main Conveyor: 1100mm (43.3") Belt full length Hydraulic raise/ lower of main conveyor T-Link Telemetry System: T-Link Telemetry System fitted c/w 3 years data subscription Optional RS Component: 3.66m X 1.52m (12’ X 5’) two deck after screen 500mm (20”) wide belt hydraulic folding re-circulating conveyor able to slew for stockpiling oversize material 1400mm (55") wide belt fines conveyor Rapid detach after screen system for flexibility
