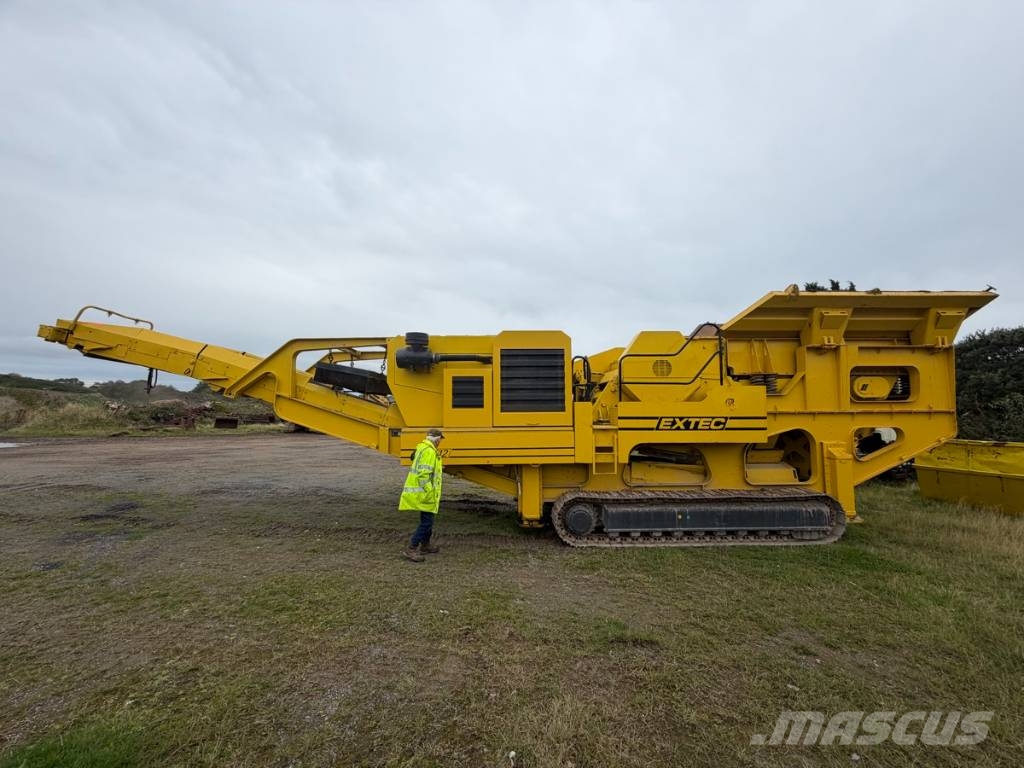

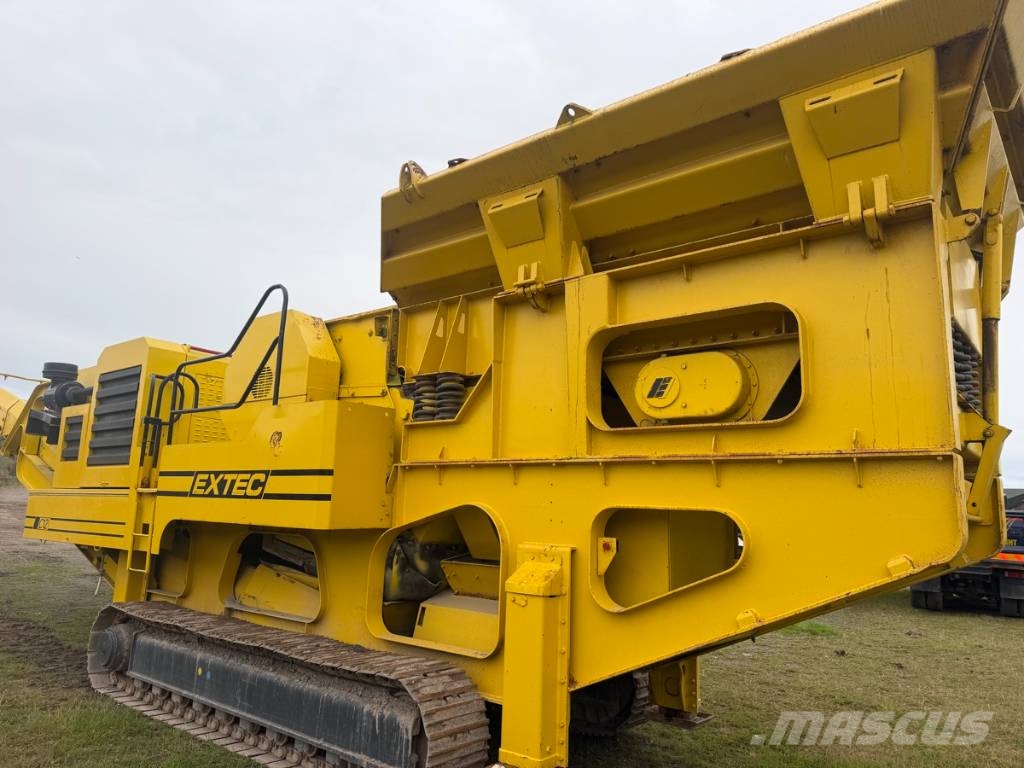

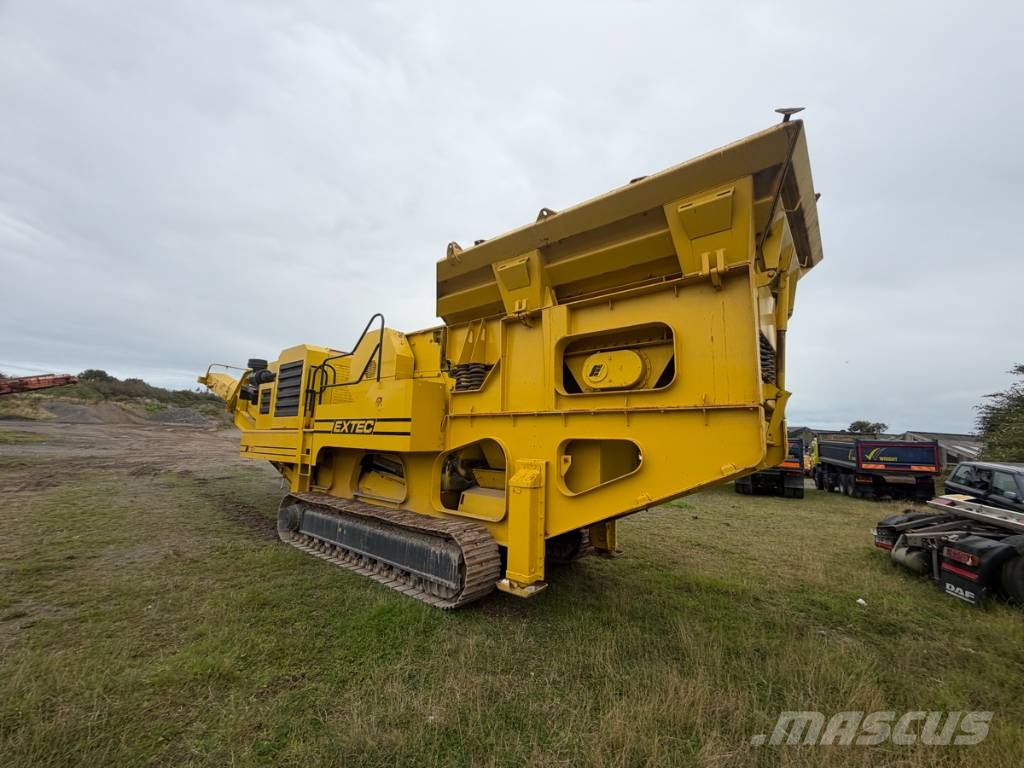

Extec C12

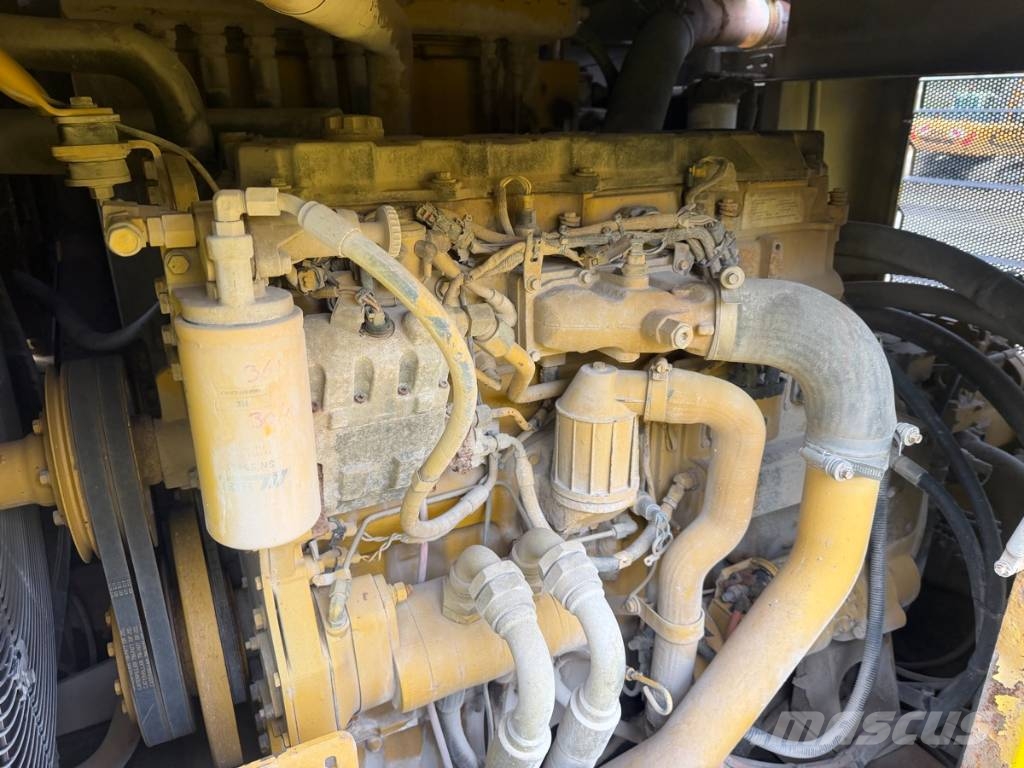

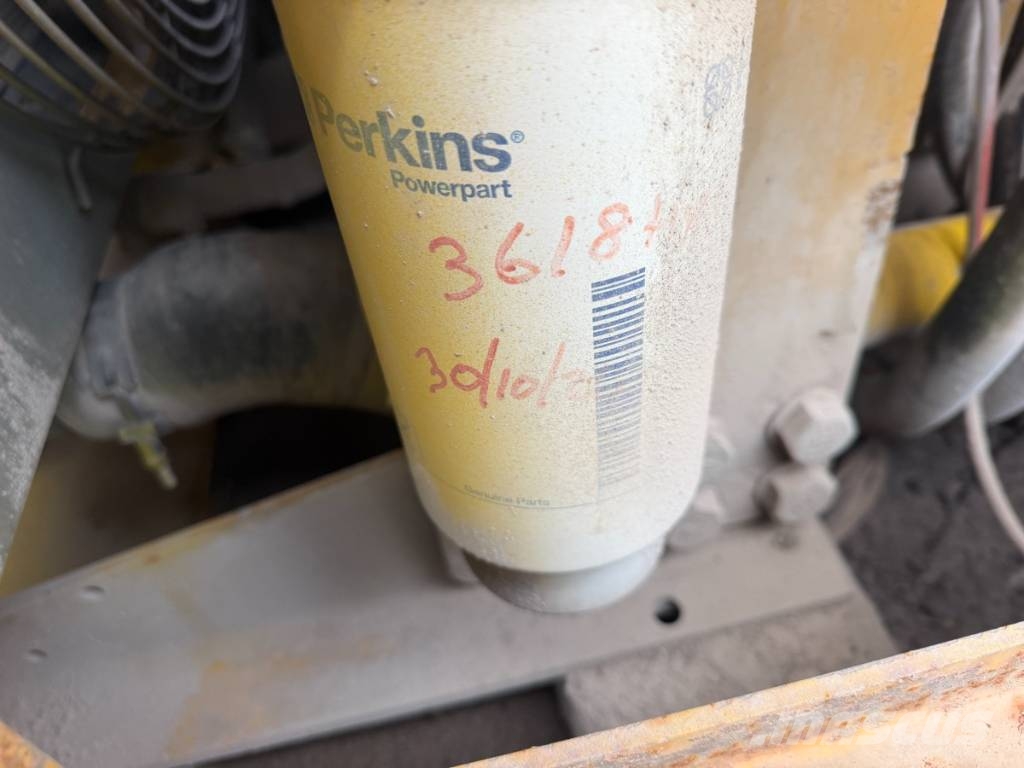

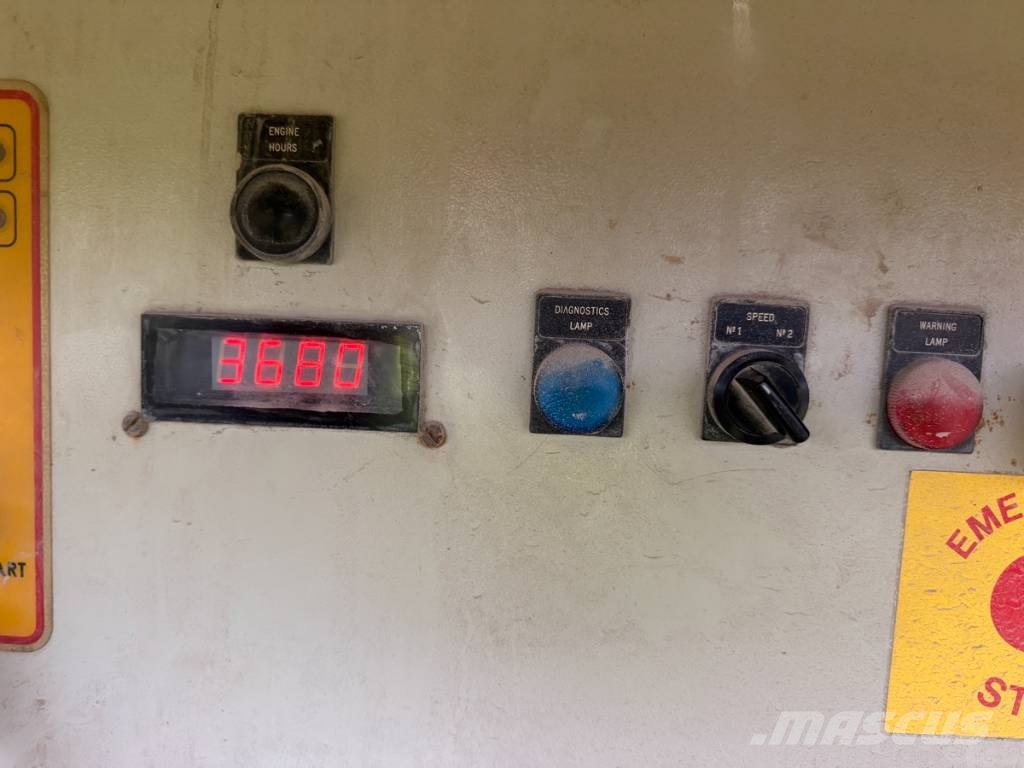

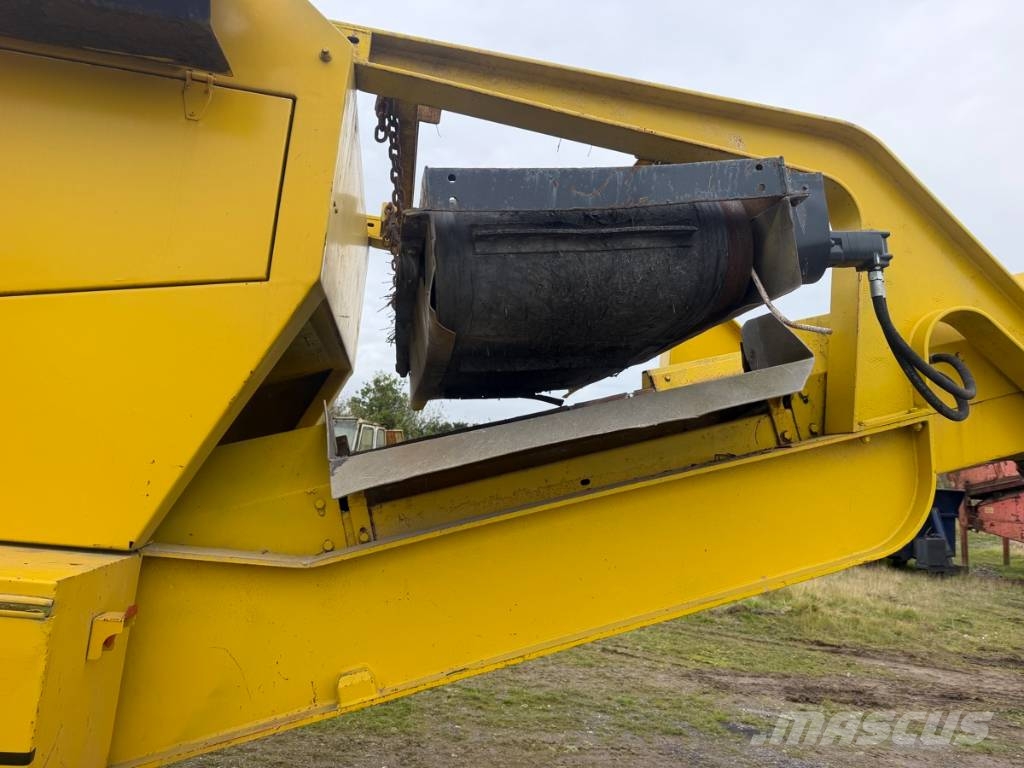

1 Owner from new and immaculate 3680 Hours (genuine) Last service at 3618hrs Overband Magnet Specification Extec C12 / C12+ Year 2007 Crusher type Single-toggle jaw crusher Feed opening 1,200 × 750 mm (48 × 30 in approx.) Jaw speed 300 rpm Drive system Hydraulic Operating weight Approximately 46.4–48 tonnes Hopper width 2,751 mm Feeder width 1,100 mm Feeder length 4,000 mm Hopper capacity Approximately 5.3 m³ on the earlier C12 Main conveyor 1,000 mm wide Side conveyor 650 mm wide Engine and power Specification Details Engine on C12+ Caterpillar C9 diesel Maximum engine power 261 kW / 350 hp Earlier C12 engine Deutz BF6M 1015C on documented versions Fuel tank 420 litres on the earlier C12 Hydraulic tank 1,400 litres on the earlier C12 Transport and working dimensions Dimension C12+ Transport length 14.65 m Transport width 2.76 m Transport height 3.43 m Transport length with bogie 15.38 m Transport height with bogie 3.84 m Working length 15.75 m Working width 4.11 m Working height 4.06 m Operating weight 46.38 tonnes Crushing applications Concrete and reinforced concrete Demolition rubble and bricks Limestone and other natural stone Granite and slate Asphalt The actual tonnes-per-hour output depends on the material, feed size, jaw setting and moisture content. I would not rely on a single throughput figure without knowing the application.
