Doosan DX 225

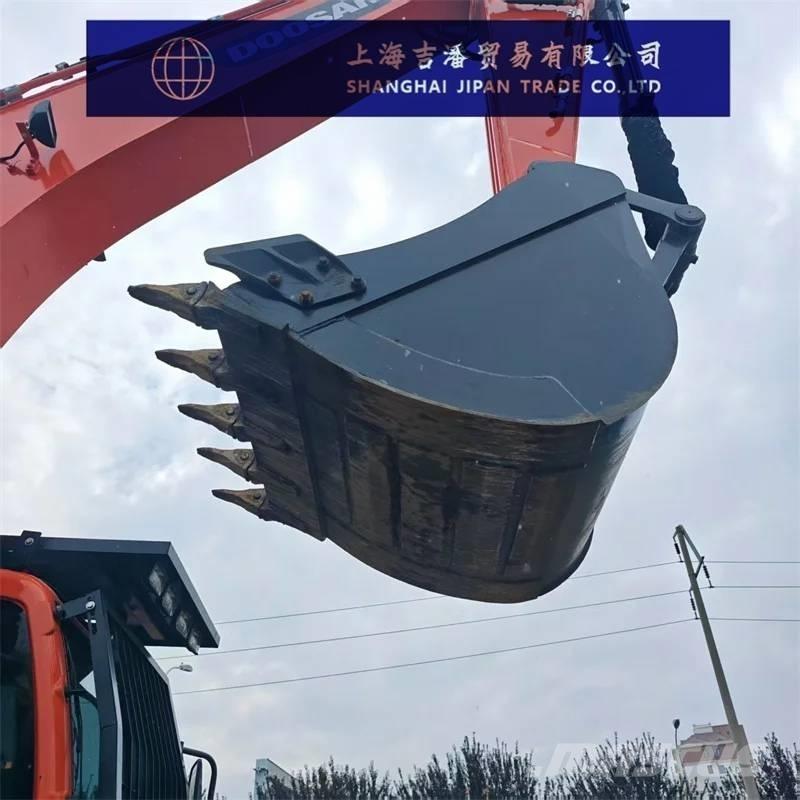

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

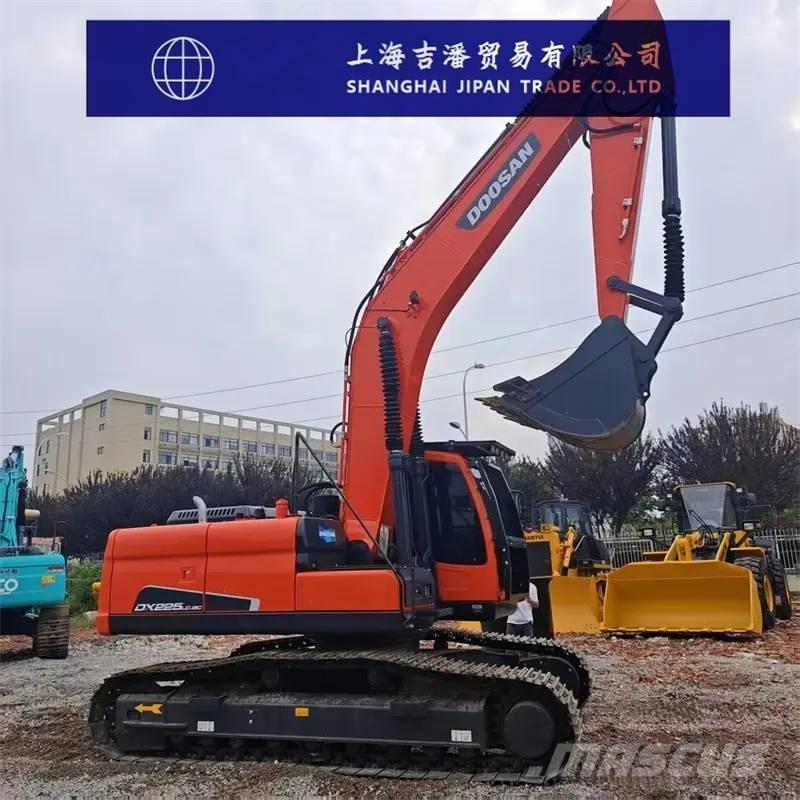

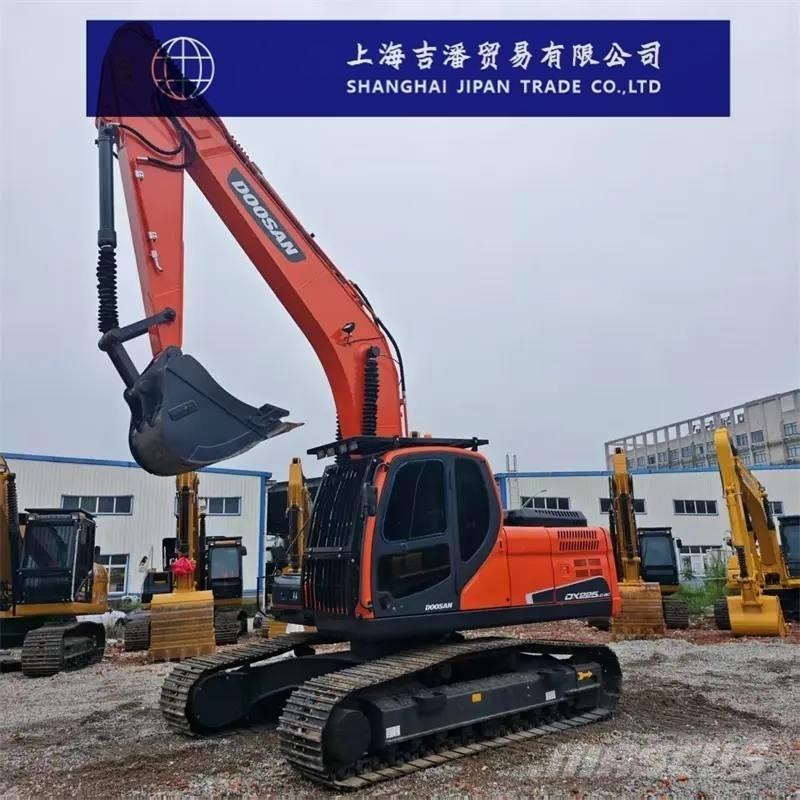

Parameter configuration of Doosan DX225LC-9C Excavator Tonnage (tons)22 The working weight of the entire machine (kg) is 21,800 Bucket capacity (m³):1.05 m³ Boom length (mm):5700 The length of the boom (mm) is 2900 Performance Rotational speed (rpm):10.5 Walking speed (km/h)5.7/3.1 Ground specific pressure (Kpa)44 Bucket digging force (kN)152 The digging force of the boom (kN) is 108 Power system Engine model: DL06 Rated power (kw/rpm):115 (154 HP) / 1,900 Number of cylinders:6 Cylinder diameter × stroke (mm):100 *125 The form of work is listed directly Hydraulic system The maximum flow rate of the main pump (l/min) is 2 X 212/min Oil capacity Fuel tank (L)400 Hydraulic System (L)195 Main body size Total transportation length (mm):9,506 The total transportation width (mm) is 2,990 The total transportation height (mm) is 2,891 The total height of the cab (mm) is 832 Boarding width (mm):1,008 Total track length (mm):4,440 Track plate width (mm):600 Total width of the tracks (mm):2,990 Minimum ground clearance (mm)475 The ground clearance of the counterweight (mm) is 1,096 The minimum turning radius (mm) of the front working device is 562 Rear end turning radius (mm):2,794 Scope of work Maximum excavation radius (mm):9,873 The maximum excavation radius (mm) of the shutdown face is 9,699 Maximum excavation depth (mm):6592 Maximum excavation height (mm):9,616 Maximum unloading height (mm):6,830 Maximum vertical excavation depth (mm):3,929 Maximum effective excavation depth (mm):6,411
