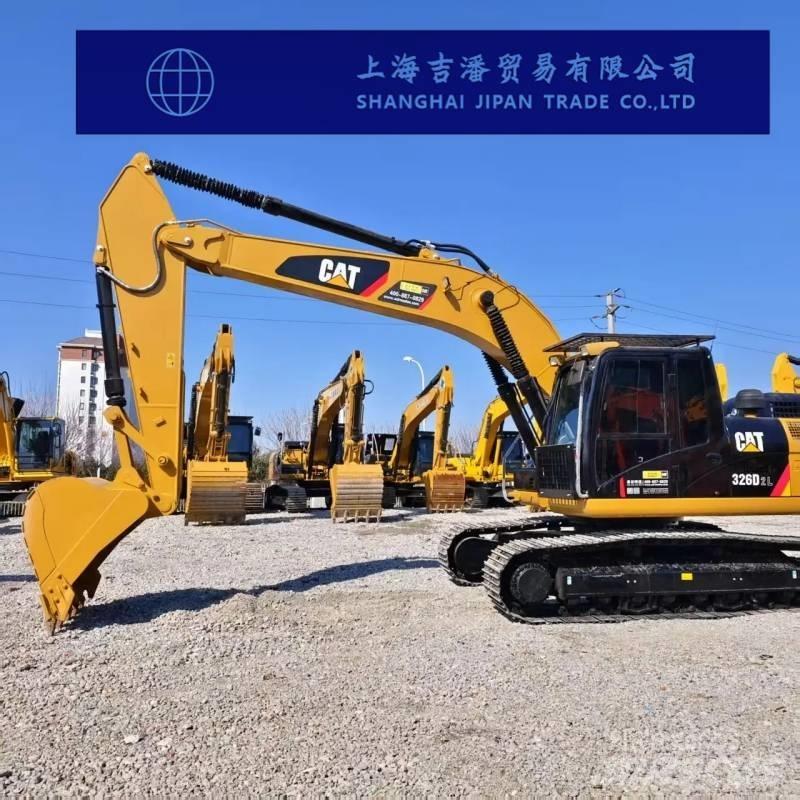

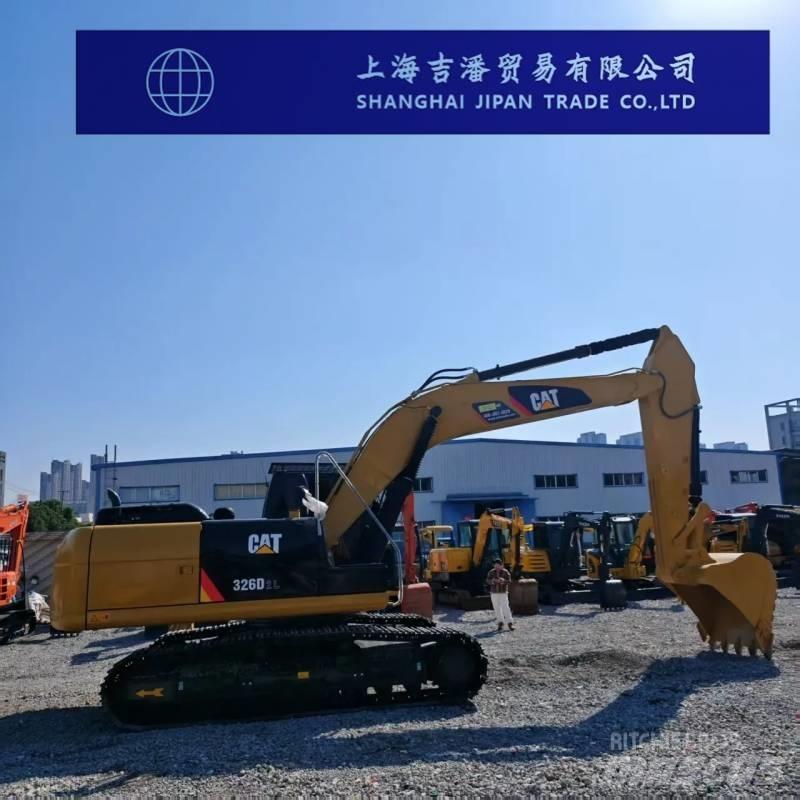

CAT 326 D

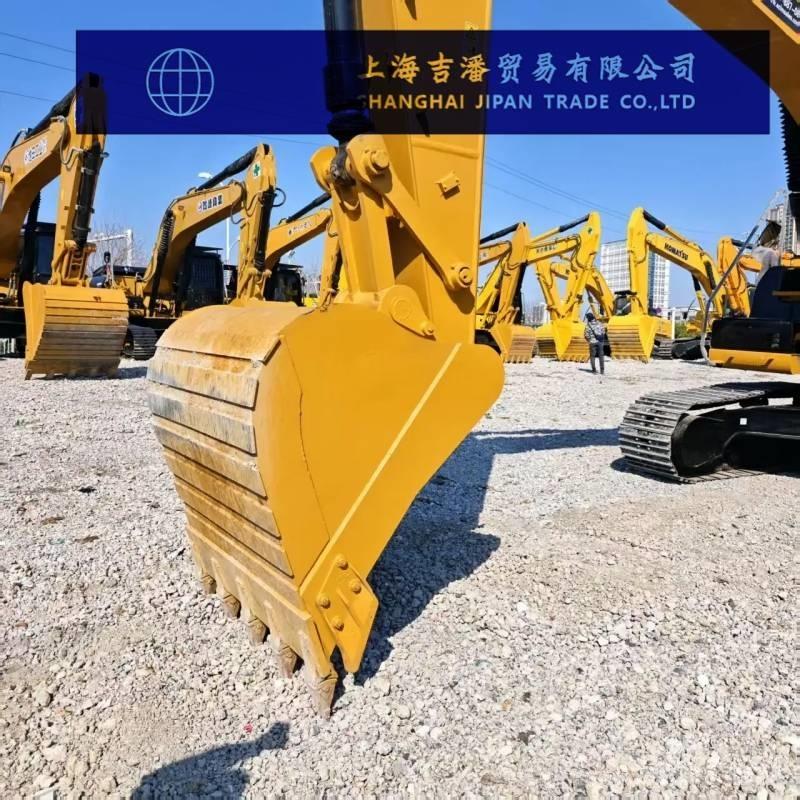

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification The working weight of the entire machine (kg) is 25,560 Bucket capacity (m³) : 1.35/1.57 Boom length (mm) : 5300/5900 Boom length (mm) : 2000/250/2950 Tonnage (tons)26 Power Traditional Power Bucket backhoe Joint venture/import by manufacturers Power Traditional Power Performance Rotational speed (rpm) : 9.6 Rotary torque (Nm) : 73.4 Walking speed (km/h)5.5 Bucket digging force (kN)174 The digging force of the bucket arm (kN) is 122 Maximum traction force (kN)227 Power system Engine model: Caterpillar C7 ACERT Rated power (kw/rpm) : 140 Displacement (L)7.2 Cylinder diameter × stroke (mm)110×127 The cooling method is water cooling Hydraulic system The main overflow set pressure (Mpa) is 35 The maximum flow rate of the main pump (l/min) is 235 Type 35 of walking hydraulic motor Rotary hydraulic motor type 24.5 Pilot oil circuit (MPa)3.9 Boom cylinders - Number × cylinder diameter × stroke (mm)2×135× 135 5 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1×140×1660 Bucket cylinder - Number × cylinder diameter × stroke (mm)1×150×1156 Oil capacity Fuel tank (L)520 Hydraulic oil tank (L)145 Hydraulic system (L)300 Engine oil change volume (L) : 30 Coolant (L)30 Main body size Total transportation length (mm) : 10060 The total transportation width (mm) is 3390 The total transportation height (mm) is 3170 The total height of the cab (mm) is 2980 The ground clearance of the counterweight (mm) is 1060 The total length of the track (mm) is 4630 Track plate width (mm) : 600 The total width of the tracks (mm) is 3390 Track gauge (mm) : 2590 Minimum ground clearance (mm) : 470 The rear end turning radius (mm) is 2940 Scope of work The maximum excavation radius of the shutdown face (mm) is 10030 Maximum excavation depth (mm) : 6740 Maximum excavation height (mm) : 9660 Maximum unloading height (mm) : 6700 Maximum vertical excavation depth (mm) : 5830 The maximum effective excavation depth (mm) is 6560
