Stock interno nr.
SD32Plus
Contratto di assistenza
Sì
Larghezza operativa
413 cm
Classe di emissione
Fase II
Motore
Cummins NTA855-C360S10
Potenza motore
235 kW (320 hp)
Dimensioni trasporto (LxLxH)
8560 x 4130 x 3640 mm
Condizioni Info/Garanzia
ISO9001
Condizioni pneumatici anteriori
100
Nazione di produzione
Cina
Attrezzato per
propertynames.pp_equippedfor_2100012
Condizioni di consegna
FOB, CFR, CIF, EXW
Altre informazioni

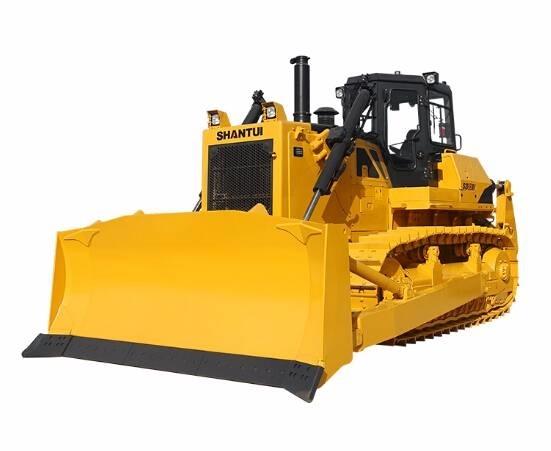

Technical Features
●Cummins NTA855-C360S10 engine features strong power and high efficiency and energy-saving.
●The high reliability hydraulic torque converter, the power shift transmission, and two-stage spur gear final drive feature high power transmission efficiency and high durability and productivity.
●The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating.
●The integrally injection molded instrument panel features reasonable layout and beautiful modeling and realize the automatic diagnosis and whole-process monitoring for the malfunctions in domestic market.
●The optimized working lamp arrangement improves the lighting performance of vehicle.
●The safety facilities including reversing alarm and the working warning lamp are equipped.
●The main frame can absorb the high strength impact, vibration, load, and torsion generated during the operations to support the continuous high-strength operations of machine under severe working condition.
●The external working valves ease the daily maintenances and realize better maintainability for the valves. ?
●The PPC pilot controls achieve better labor-saving and convenient operations.
●The working device system pressure is increased to 21MPa, featuring high efficiency and energy-saving.
●The low-drive final drive is equipped to provide move powerful drive force and efficient gradeability.
●The balance beam can reduce the impact load transmitted to the chassis system to improve the trafficability of machine on uneven terrains.
●The pilot control system features light and flexible operations.
●The gearshift, steering, and accelerator controls are arranged on the left side of the driver, with the adoption of flexible shaft mechanism. The working device controls are centrally arranged on the right side of the driver, featuring comfortable and convenient controls.
Performance Parameters
Length × width × height (mm) (excluding ripper) 8560×4130×3640(including ripper) Operating weight (t) (excluding ripper) 37.2
Engine model NTA855-C360S10 Net power/rated speed (kW/rpm) 235/2000
Ground pressure(Mpa) 0.105 Blade type Straight tilting blade Angle blade Semi-U blade
Blade capacity(m3) 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade
Applicable Working Conditions
Bulldozing, digging, landfill, and other bulk operations.Mostra altri
