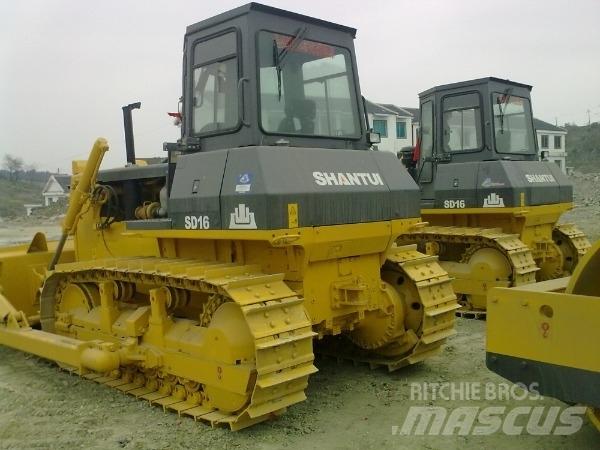

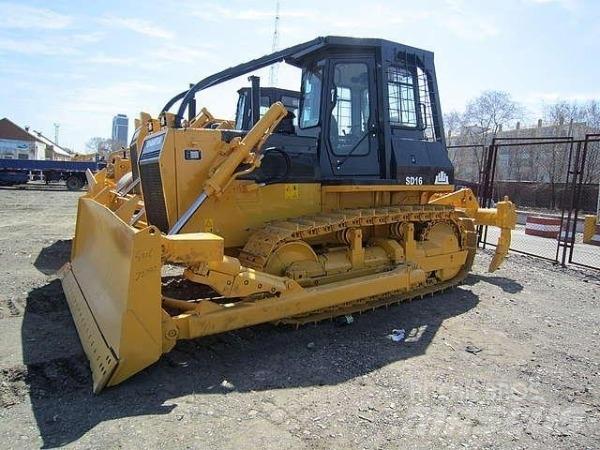

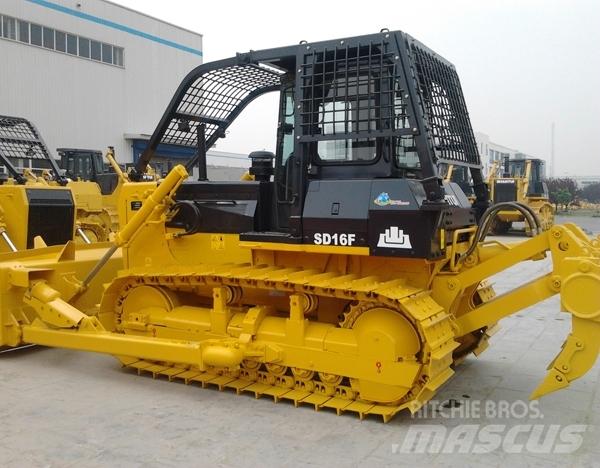

Shantui SD16F

three-shank ripper

L×W×H (Ripper not included) 5345×3388×3032mm Operating weight (Ripper not included) 17.5t Engine Shangchai SC11CB184G2B1/ Weichai WD10G178E25 Rated power 120/1850kW/rpm Gradeability 30° Blade type Straight tilt blade U blade Angle blade Blade width Straight tilt blade 3388×1149mm U blade     3556×1120mm Angle blade 3970×1040mm Dozing capacity Straight tilt blade 4.5m3 U blade 5m3 Angle blade 4.3m3 Ma× drop below ground of blade 540mm Lift height of blade 1095mm Ripper type Three-shank ripper Ripping depth of ripper 572mm Lifting height of ripper 592mm Number of carriers (each side) 2mm Number of track rollers (each side) 7 Number of track shoes (each side) 39 Width of track shoe 560mm Track gauge 1880mm Ground length and ground pressure 2635-0.062mm/MPa Pitch 203.2mm Forward speed 0–3.29km/h 0–5.82km/h 0–9.63km/h Reverse speed 0–4.28km/h 0–7.59km/h
