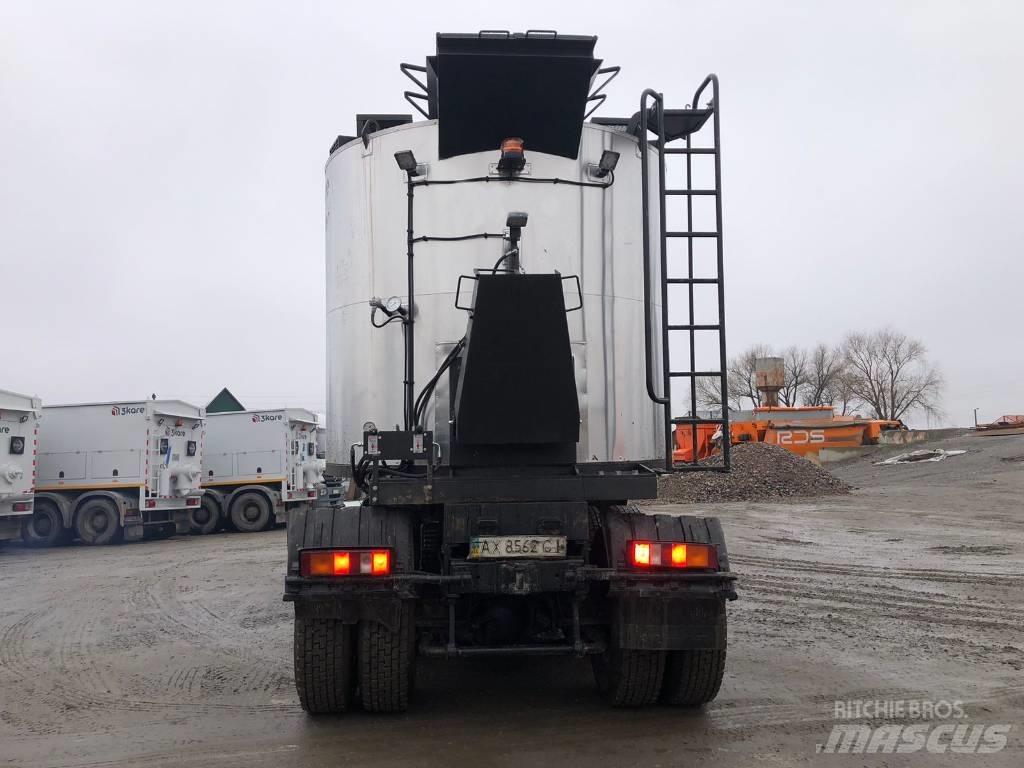

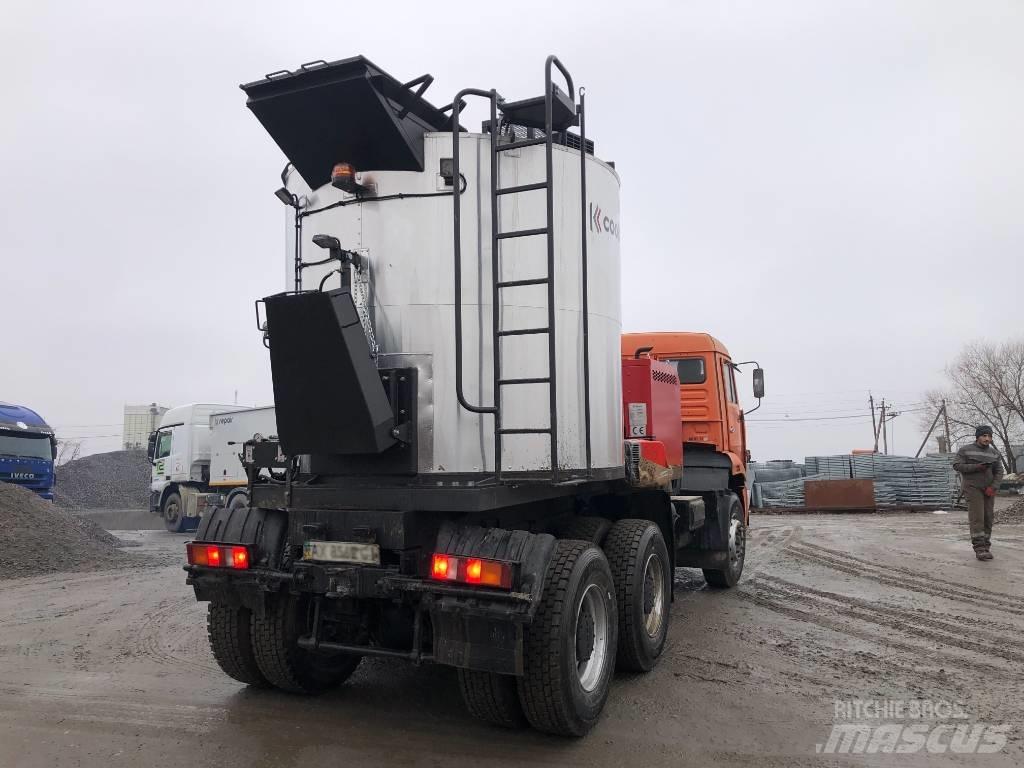

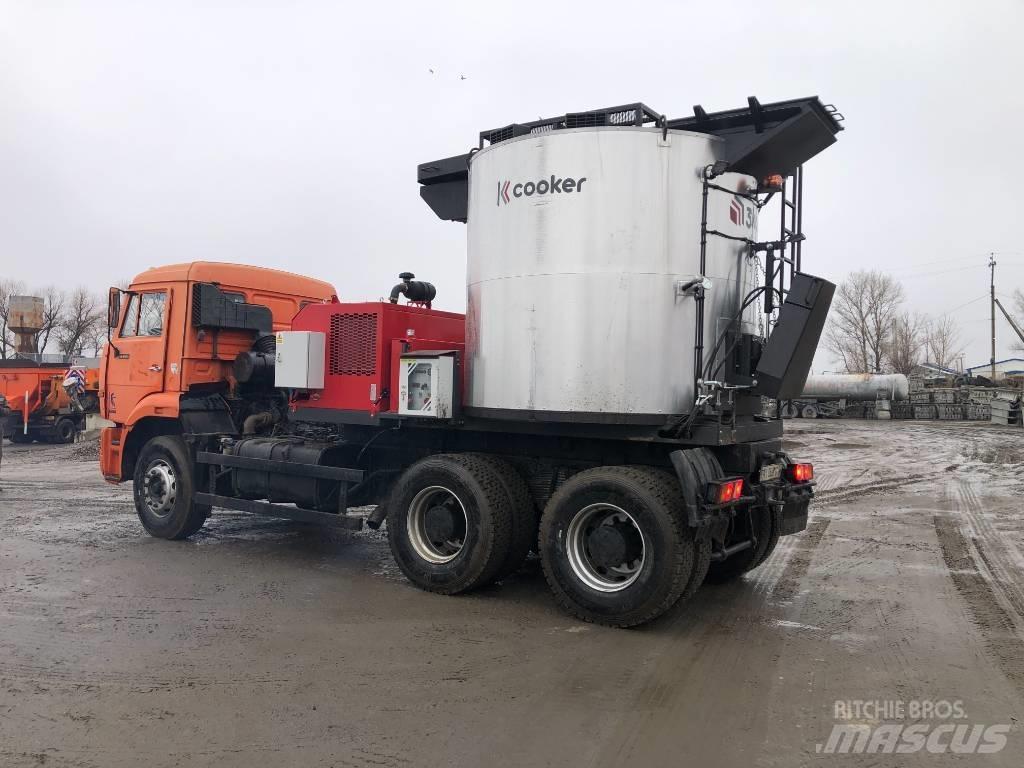

3kare K-Cooker 5

Machine for cast asphalt concrete - K-Cooker 5 Main features: - Melting tank with a capacity of 5000 liters. - High-speed melting tank with high power burner and thick insulation - High quality hydraulic, electrical and electronic components for reliable and trouble-free operation. - Stop start button for easy operation. Convenient operator control. а) MELTING TANK - Melting tank with a capacity of 5000 liters. - Fast-acting heating of the thermal burner jacket with thermostatic control system. - Insulated (100 mm; 80 kg/m³ Rockwool) tank body. - Manhole (rectangular cross-section) with safety grid. - Vertical stirrer/mixer for mixing the material. б) SEALING GATE - Hydraulic opening of the sealing gate with a chute for discharge of the material from the tank. - Piston control with user-friendly hydraulic system - Hydraulic gate available at the rear of the unit - Optional second gate on the side of the unit c) DIESEL ENGINE AND POWER SYSTEM - Liquid-cooled Kubota diesel engine with 46 hp. - Piston-type hydraulic pump (up to 350 bar) to supply the system. г) TYPES OF CHASSIS - Skid type unit for mounting on a truck, trailer or chassis. - Optional tractor type or trailer type units are available on request. д) HEATING SYSTEM - Automatic diesel burner o Minimum heat output (kW) up to ErP : 190 kW. o Maximum heat output (kW) up to ErP : 310 kW - Full jacketed heating system to reduce heat loss - BALTUR Diesel burner for heating. - Fully automatic thermostatic control system. The burner automatically stops at the set temperature. - The diesel burner is activated by a 220 V network generated by an inverter powered by diesel engine batteries or can be connected to a landline (for heating without using fuel) - Optional indirect heating system for thermal oil. е) MIXING UNIT - Vertical mixer for mixing materials - High pressure piston type hydraulic motor to drive the gearbox. - Powerful planetary gearbox to drive the chain - Powerful chain to drive the mixer shaft (easily replaceable wear part) - Hardox steel mixers and high shear components with robust construction. - Up to 52000 Nm Mixing torque under peak hydraulic conditions (400 bar pressure) Accessories and other equipment - Illumination for night operations, rotating signal lamp
