Putzmeister M46-5

Prezzo (IVA esclusa)

Images58Videos1

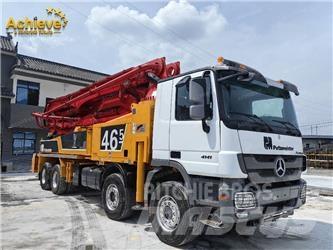

Putzmeister M46-5 Autopompe per calcestruzzo
Putzmeister M46-5 Autopompe per calcestruzzo
FavoritePreferito
shareCondividi
Save searchSalva ricerca
Stampa

INFORMAZIONI

Categoria
Autopompe per calcestruzzo
Marca/modello
Putzmeister M46-5
Anno di costruzione
2013
Ore di utilizzo
3.000 h
Condizioni
Ricondizionato,Rigenerato
Paese
Cina
Valutazione generale
1
2
3
4
5
Mascus ID
FF862F64

PREZZO

Scegli la valuta

DETTAGLI

Stock interno nr.
AICPT016
Numero di sezioni del braccio
5
Ultima ispezione
2024-09-26
Peso lordo
32.000 kg
Lunghezza del braccio
300 cm
Sbraccio orizzontale
4.110 cm
Massima distanza in verticale
4.610 cm
Movement type
Static
Pump power type
Gasolio
Pump power
300 kW
Dimensioni trasporto (LxLxH)
11850 x 2500 x 4000 mm
Classe di emissione
Fase V
Produttore motore
Ergonic3. EU Version
Tipo di pompa
Pistone
Produttore telaio
Mercedes Benz
Marca pneumatico
Mercedes Benz
Condizioni di consegna
FOB, CIF
Certificati
EPA, CE, TÜV
Accessori
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 46.1 m Horizontal Reach gross 41.1 m Horizontal Reach net 38 m Reach Depth 32.4 m Unfolding Height 11.1 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / mm/bar Support width Standard (front-rear) 8.4 / 9.3 m Support width OSS (front-rear) 5.6 / 6.9 m Support width iSC (front/rear) 2.6-8.4 m Length x Width x Height 11.85 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
Altre informazioni
If you are looking for a lightweight, high performance machine on 4 axles — the truck-mounted concrete pump M47-5 is built for you. Weighing less than 32 t, the 47-5 is one of the lightest in its class and provides a more than sufficient payload reserve. It is ideal for application at medium to large sized sites as well as job sites that offer challenging setup situations. Different small support Options available: Europe: ISC with permanent check of permitted arm positions and working ranges Outside Europe: OSS (One Side Support) The new fully flexible outrigger together with the intuitive Ergonic 3.0 control gives you all the freedom you need when space on the construction site is tight again. Key Features Below 32 t total weight Smooth 5-section-boom with Roll Z-Folding TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (iSC and OSS, One Side Support optional) Efficient work with Ergonic 3.0 operating system ReducMostra altri
