INFORMAZIONI

Categoria
Apparecchiature di lavaggio
Marca/modello
THUNE SP45SL
Condizioni
Usate
Ubicazione della macchina
Langley, British Columbia
Paese
Canada
Mascus ID
AAFD7DBB

PREZZO

Scegli la valuta

DETTAGLI

Stock interno nr.
113591
Altre informazioni

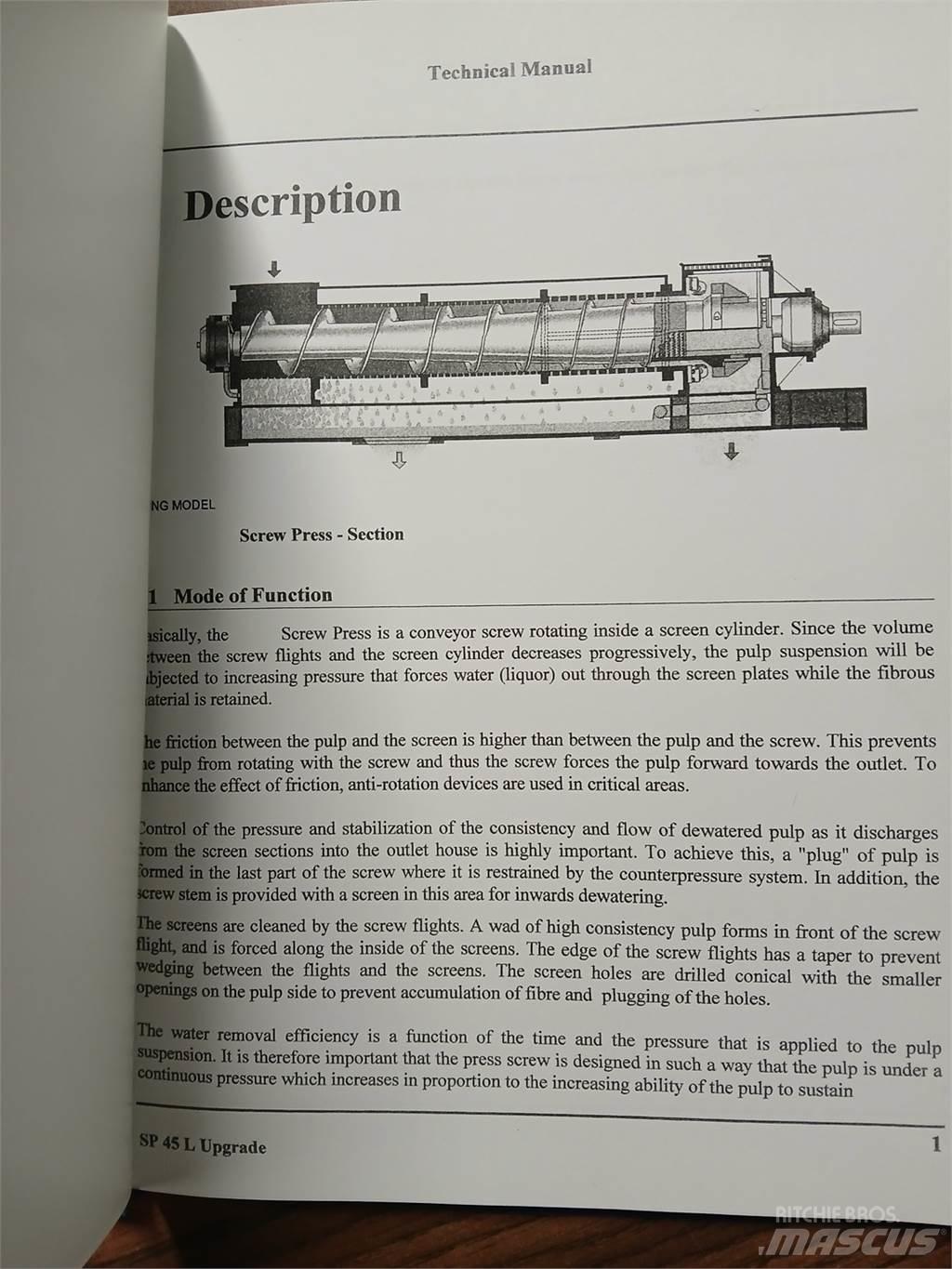

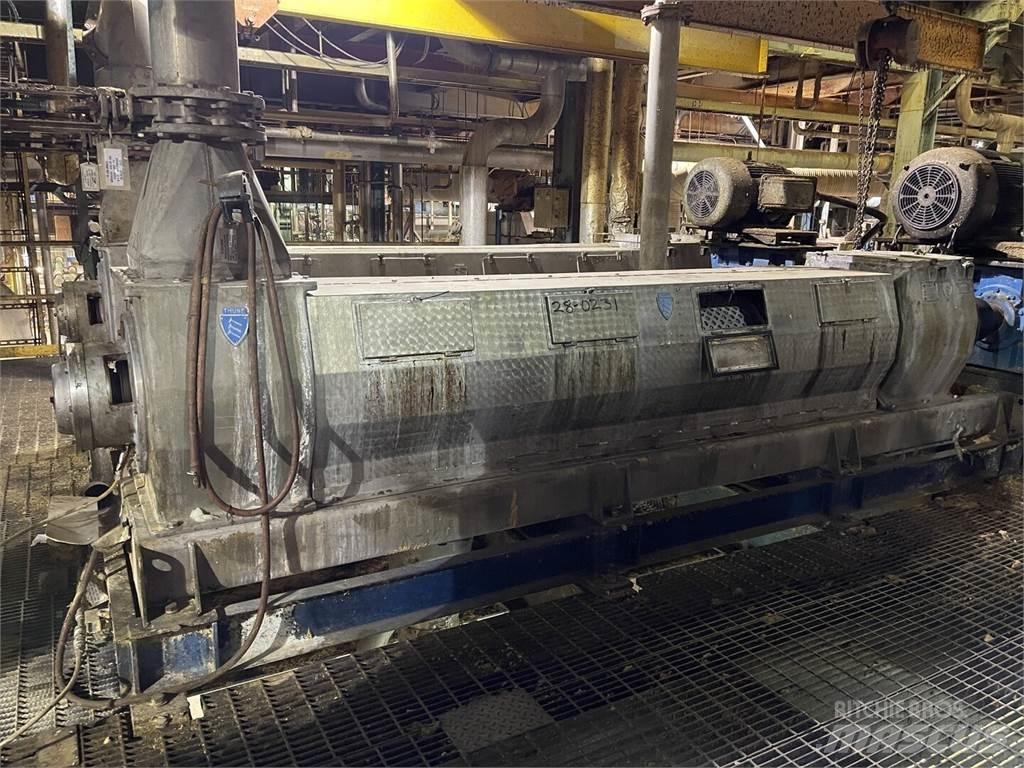

Dewatering Screw Press SP45SL Title: Dewatering Screw Press SP45SL SKU: 113591 Model: SP45SL Condition: Used [PDF BROCHURE](... MANUAL & TECHNICAL DRAWINGS](... Include: - Removing DCM extractives - Washing DIP - Washing high kappa kraft pulp - Dewatering rejects - Fiber sludge dewatering Features: - All wetted parts of high-grade stainless steel - The pneumatic counter-pressure system with piston-type individual baffles This combined with a mechanically adjusted cone ring ensures a high and even discharge consistency - The drill pattern of the screens and the close tolerances between the screw flight and the screens prevent blocking. - Improved hard facing on the screw flight in the high compression zone significantly reduces wear. - The split screen in the high compression zone enables easy screw flight inspection and maintenance. - The shaft screen in the high compression zone increases and evens out the discharge consistency. Dewatering Screw Dimensions: 4910 mm length x 950 mm width x 1030 mm height Net Weight (Just the screw): 3700 kg Nominal Capacity (Bone Dry Metric Tonnes Per Day): 120 BDMT/D Screen Cylinder Diameter: 45 cm Screen Sections: 4 Motor Power: 125 hp Gearbox Ratio: 30.427 Gearbox Nominal Power: 221 hp Gearbox Min. Speed: 1006 rpmMostra altri

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
